Starlink Gen 3 (V4) Pole Adapter - Heavy Duty Machined Aluminium

Description

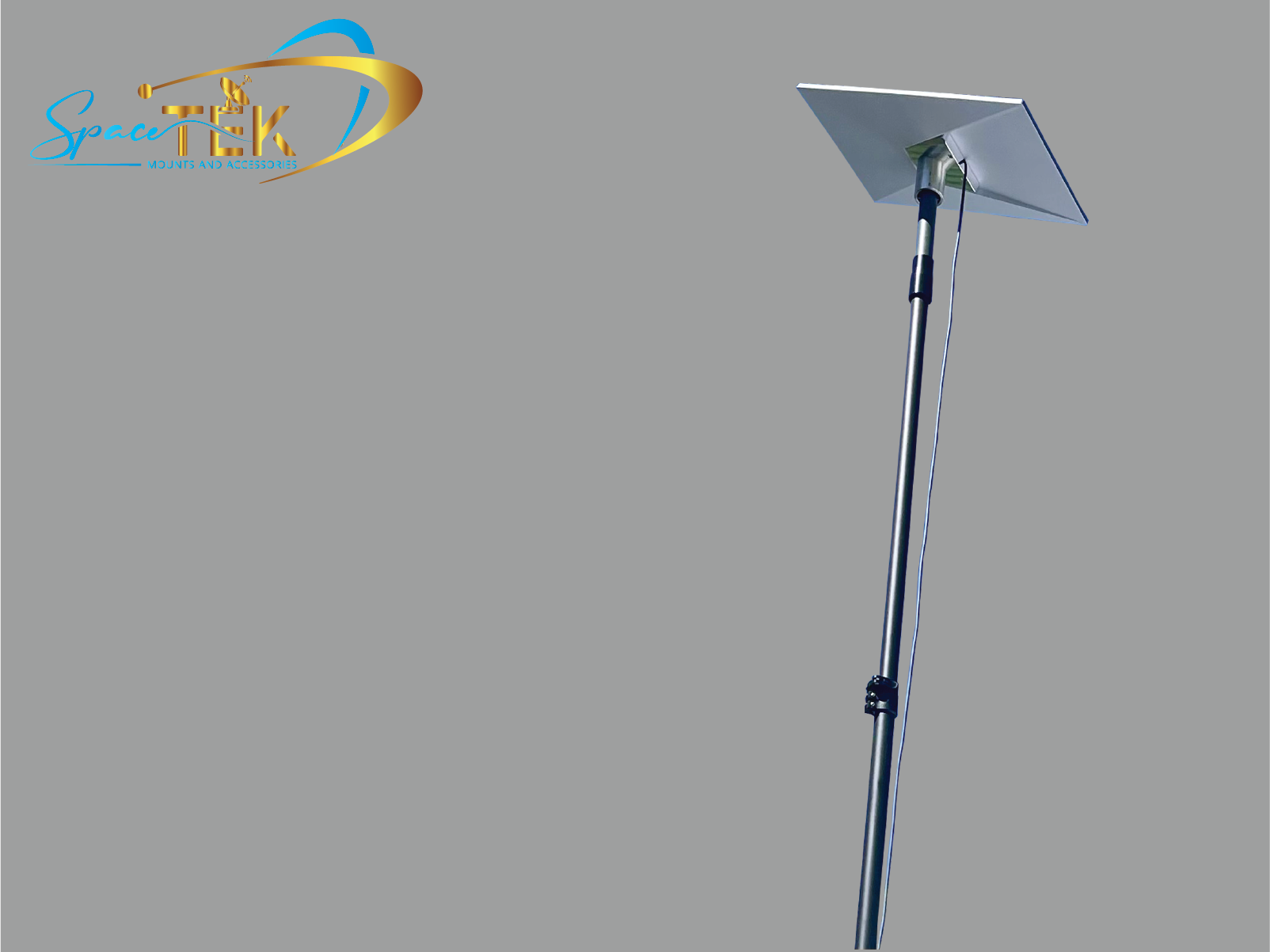

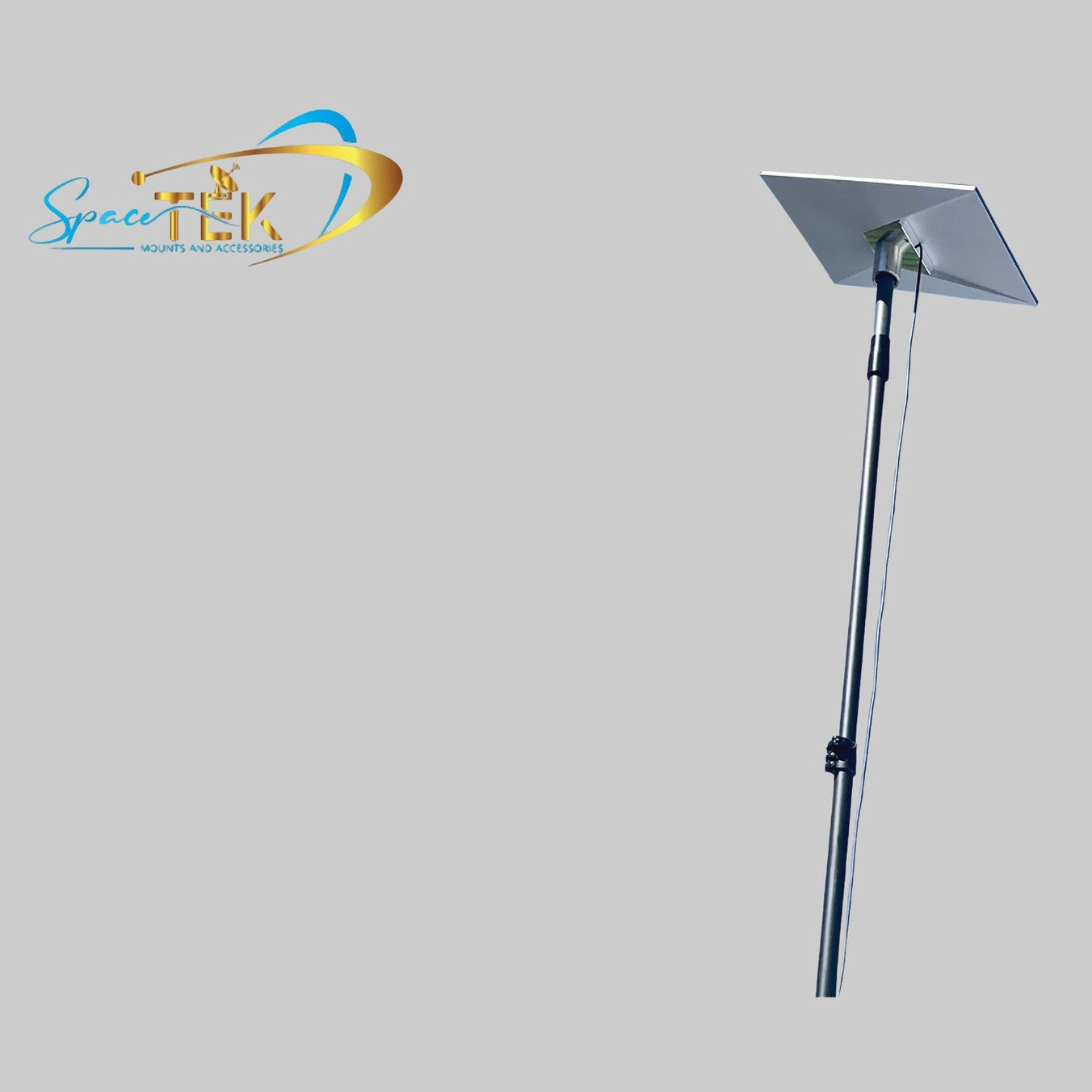

The Starlink Gen 3 (V4) Heavy Duty Pole Adapter is a precision-engineered mounting interface designed to secure the Starlink Gen 3 terminal to an existing pole or mast. It is intended for fixed installations where mechanical strength, long-term durability, and slip resistance are critical.

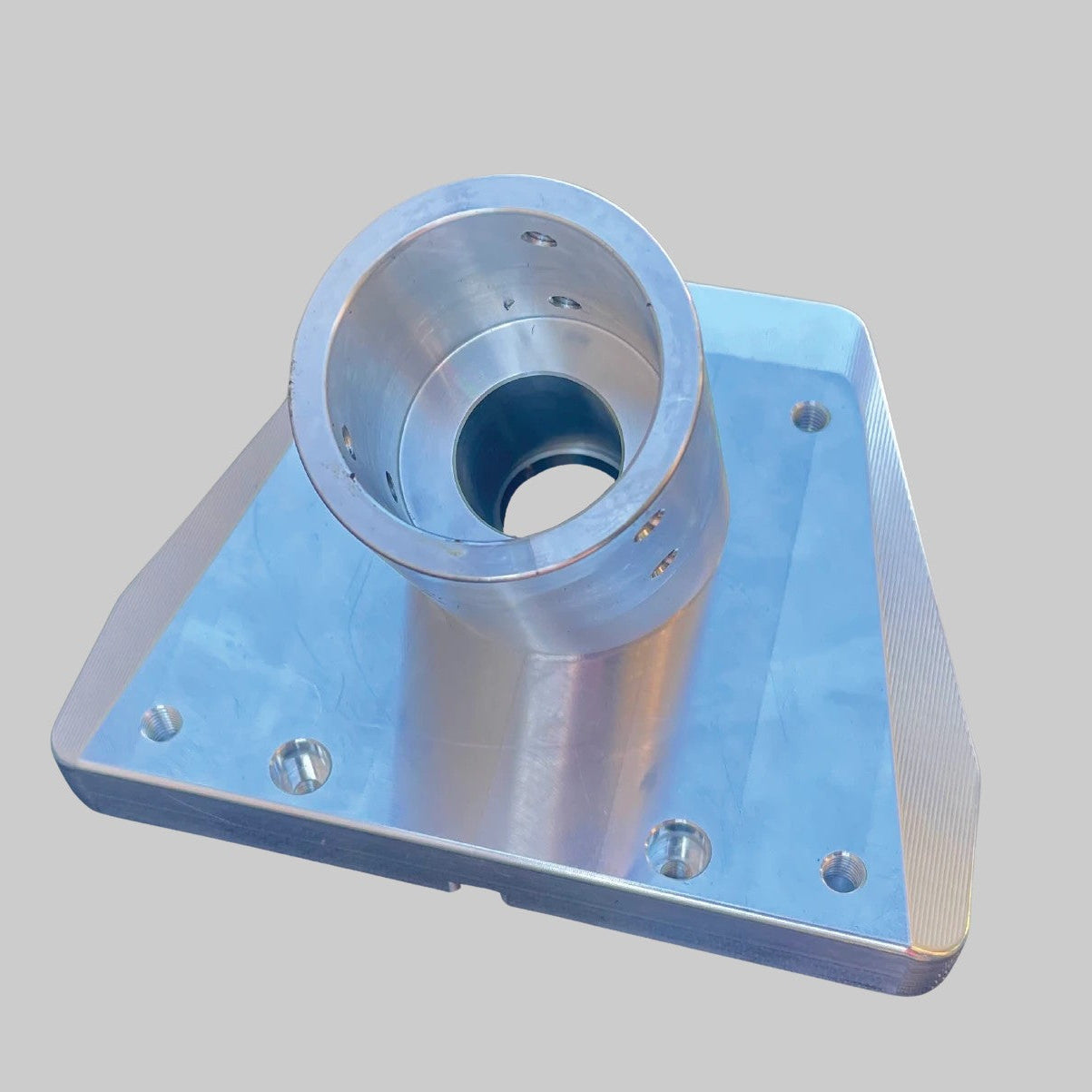

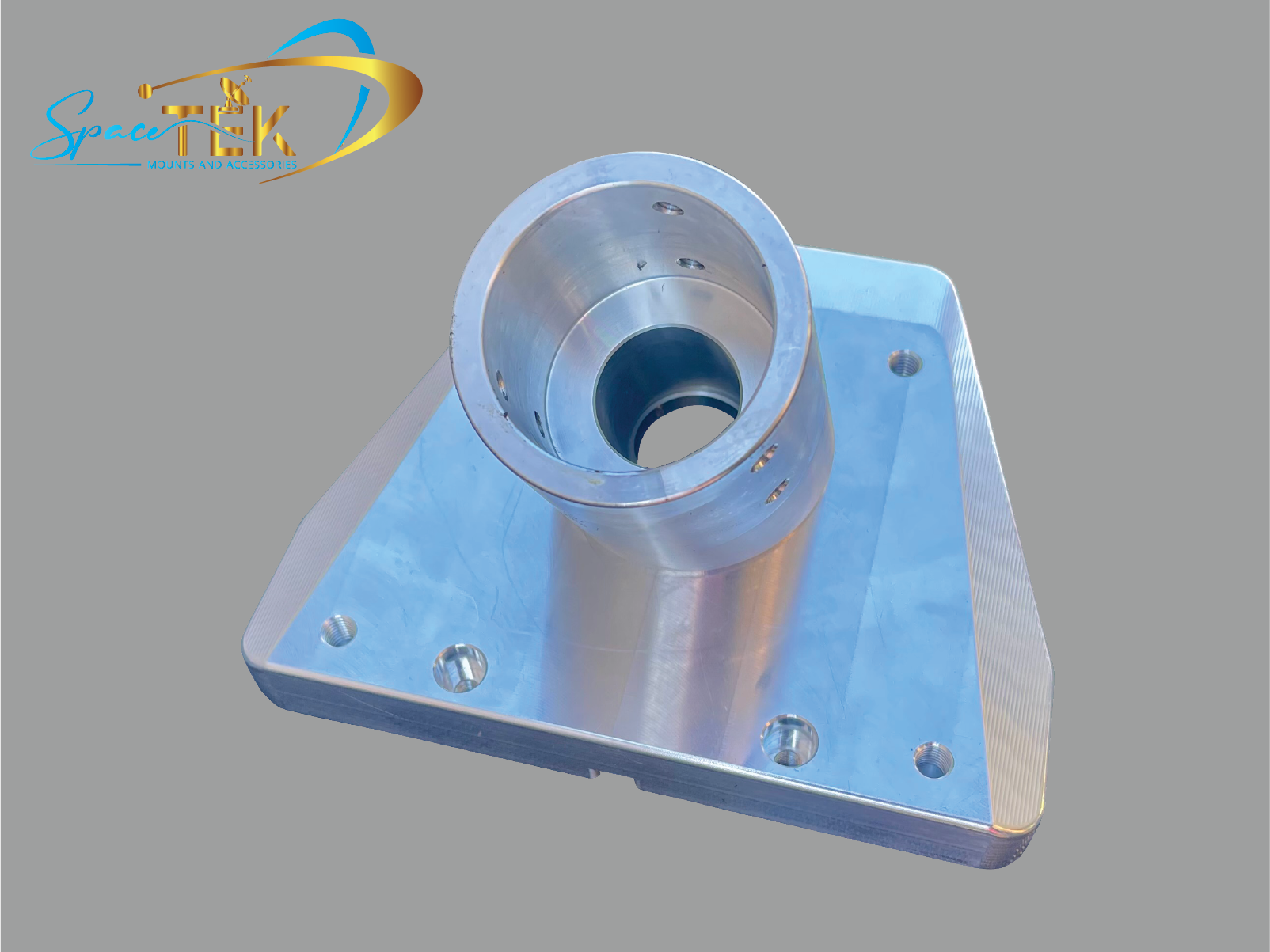

Machined from solid aluminium billet and manufactured in Australia, this adapter provides a rigid connection between the Starlink Gen 3 (V4) terminal and round poles ranging from 30 mm to 51 mm in diameter. The design supports both internal and external cable routing and is suitable for use with roof-mounted, wall-mounted, or free-standing pole structures when paired with an appropriate mounting system.

⚠️ This product is a pole adapter only. It is not a pole, mount, or freestanding structure. Installation must be onto an existing, structurally sound mast or pole.

For maximum strength and long lasting installation they can be used with our roof mount kit for Gen 2.

Also available in a Roof Kit Bundle with everything you require for Gen 3 (V4) roof mounting

Key Features

✔️ Solid Billet Aluminium Construction — CNC-machined from solid aluminium billet for high rigidity and long-term mechanical stability.

✔️ Australian Manufactured — Designed and produced in Australia to meet high material and machining standards.

✔️ Wide Pole Compatibility — Clamps securely to round poles with diameters from 30 mm to 51 mm (1.18″–2.0″).

✔️ Gen 3 (V4) Direct Interface — Purpose-built to replace the factory kickstand and mount directly to the Starlink Gen 3 terminal.

✔️ Internal or External Cable Routing — Allows the Starlink cable to be routed through the pole or externally along the mast.

✔️ Tool-Free Removal — Designed for secure installation without requiring specialised tools for future removal or repositioning.

Versatile Pole Compatibility

The adapter is compatible with a wide range of pole sizes, accommodating diameters from 30mm to 51mm (1.18 to 2 inches). This versatility makes it an ideal choice for various setups, whether for home, mobile, or outdoor environments.

• Fits 30mm to 51mm (1.18 to 2 inches) Poles: Versatile sizing ensures compatibility with a variety of pole sizes, making it easy to integrate into your current setup.
• Perfect for Different Installations: Suitable for a wide range of applications, providing a stable mount for your Starlink Gen 3 (V4) terminal.

Specifications

• Material: CNC-machined aluminium billet

• Compatibility: Starlink Gen 3 (V4)

• Pole Diameter Range: 30 mm – 51 mm

• Mount Type: Pole / mast adapter

• Cable Routing: Internal or external

• Finish: Natural aluminium

• Fixings: Stainless steel bolts and grub screws (included)

• Installation Surface: Existing round pole or mast

Installation Overview

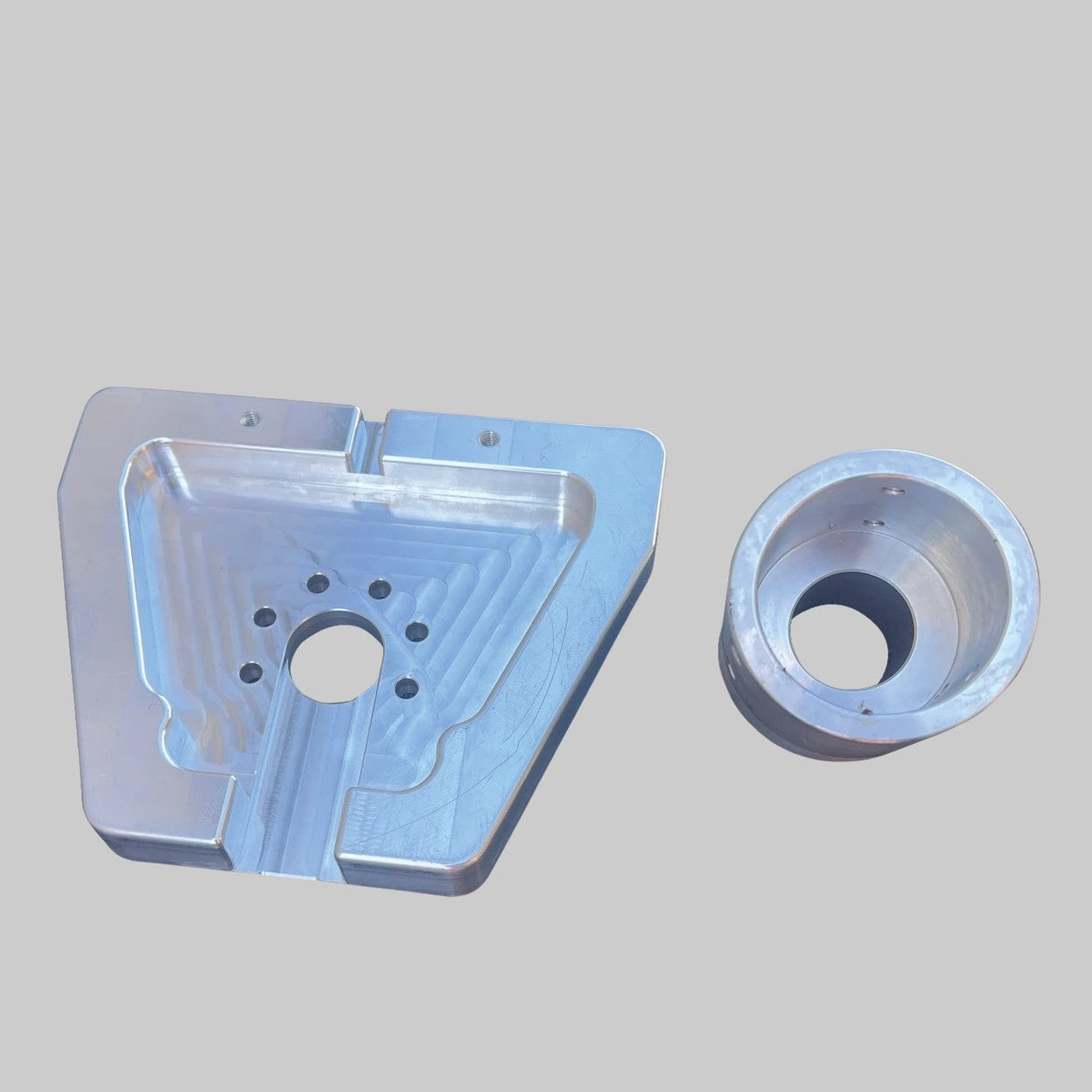

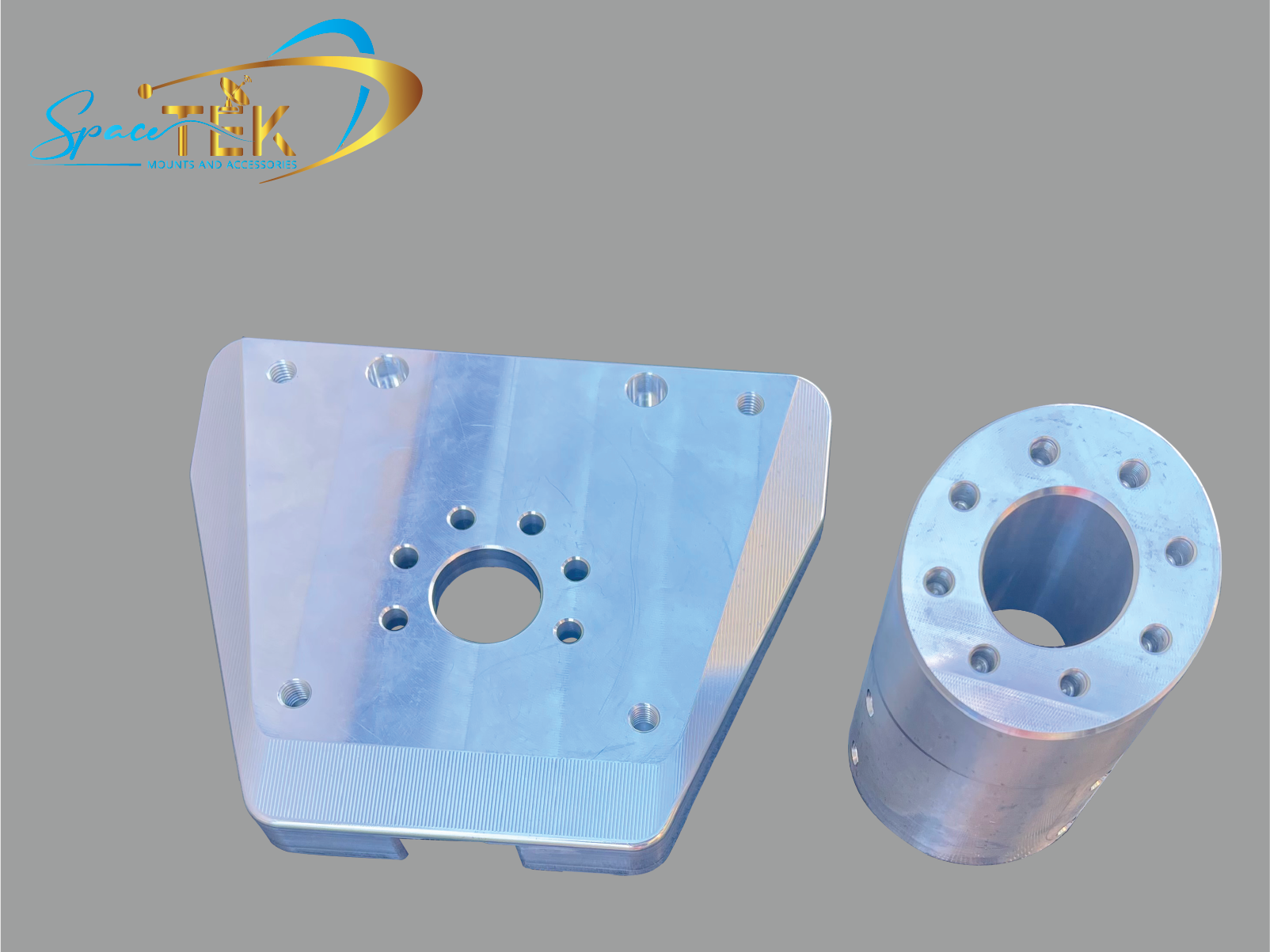

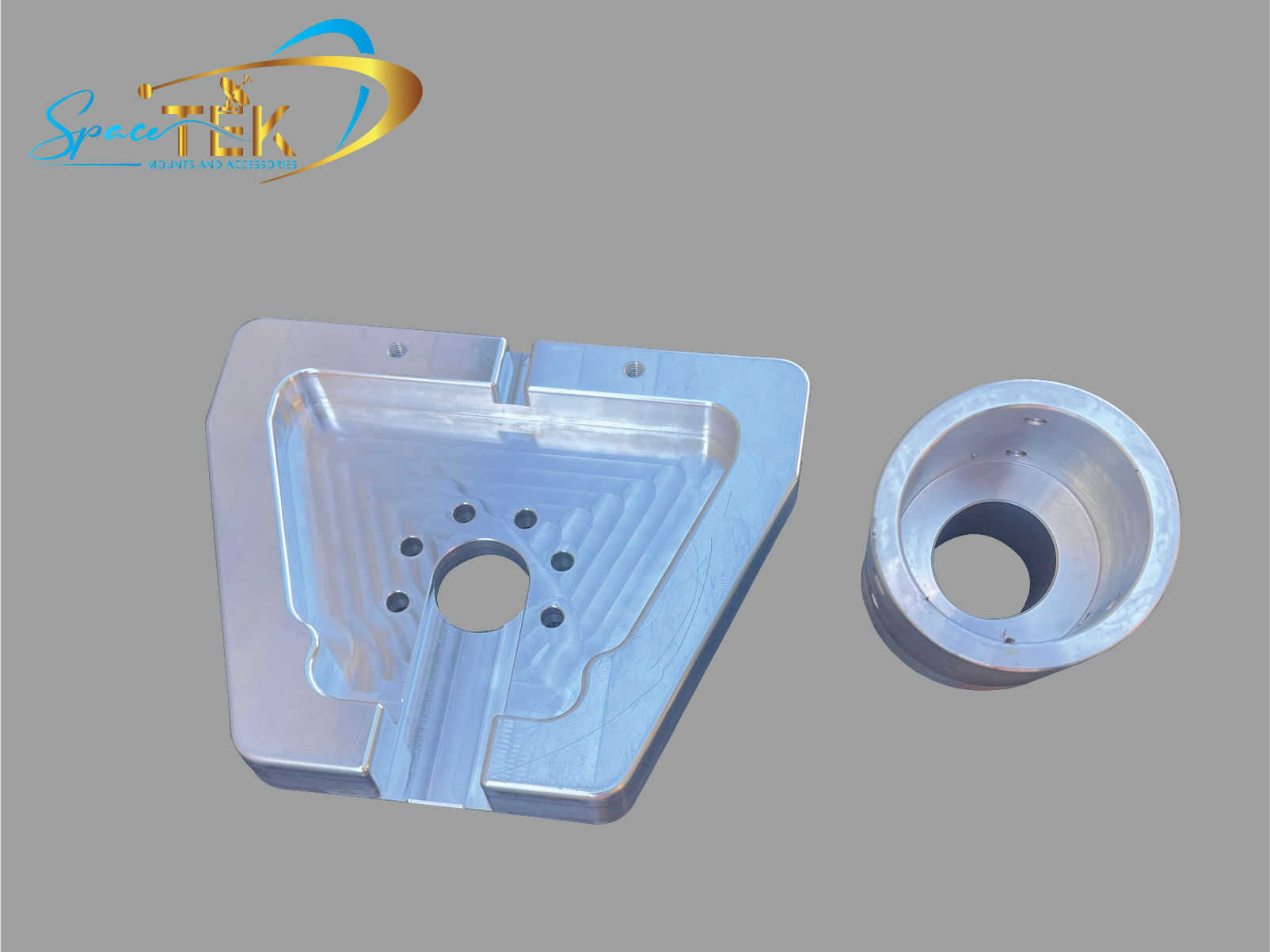

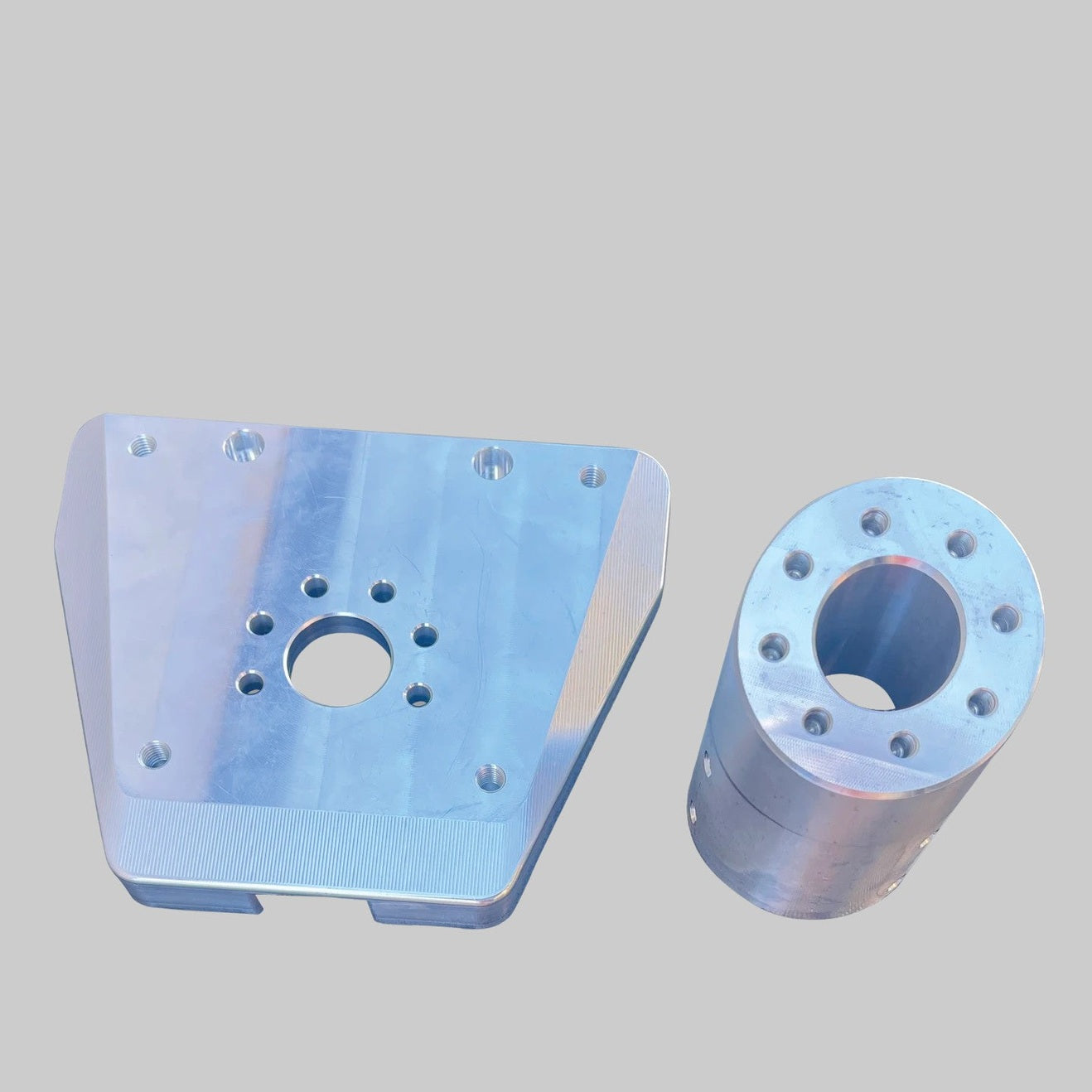

1. Attach the boss clamp to the universal adapter plate using the supplied stainless steel bolts.

2. Remove the factory kickstand from the Starlink Gen 3 terminal.

3. If routing internally, feed the Starlink RJ45 connector through the centre of the boss clamp and adapter plate.

4. Connect the cable to the terminal and slide the adapter fully into the rear mounting interface.

5. Tighten the rear mounting bolts into the shallow key slots on the underside of the terminal.

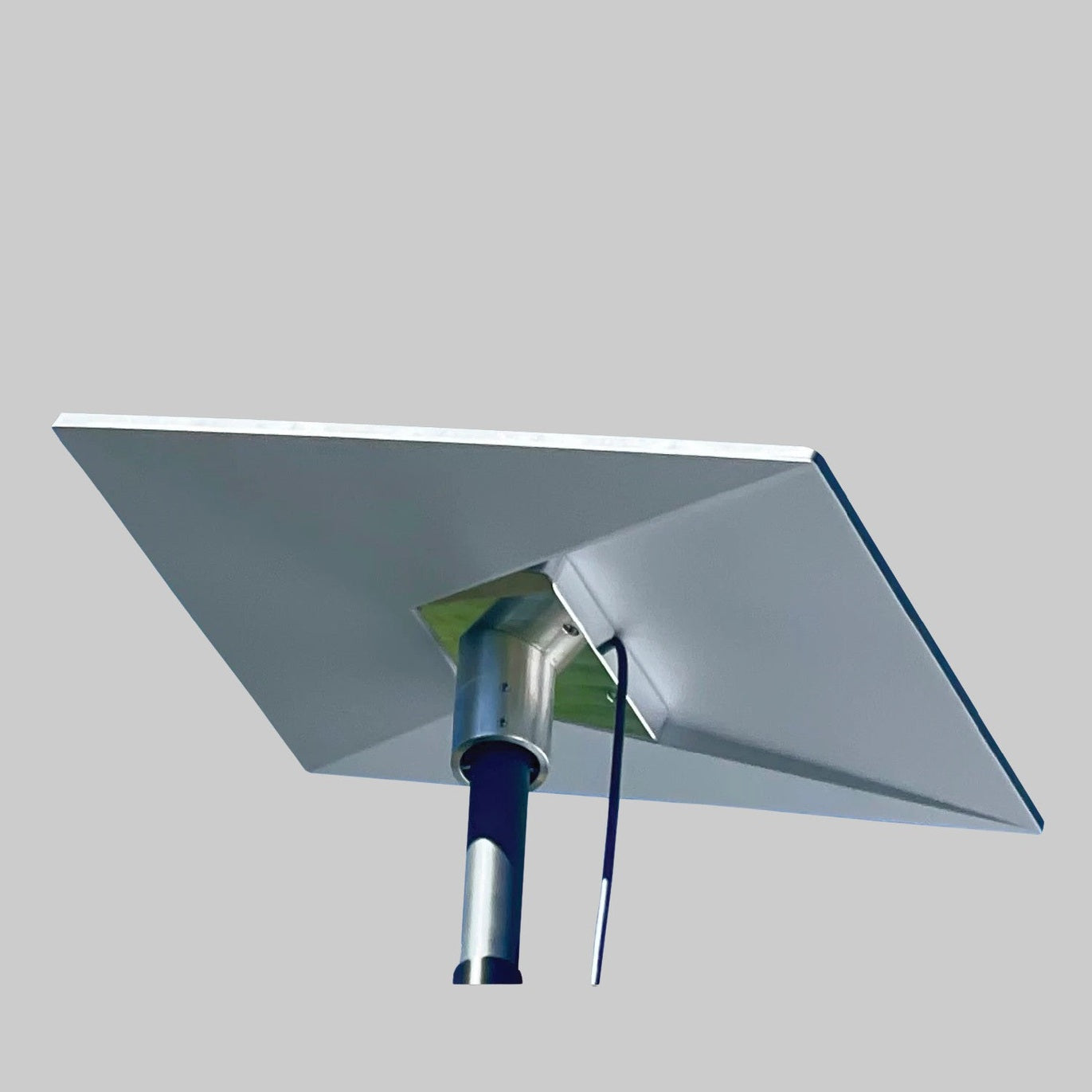

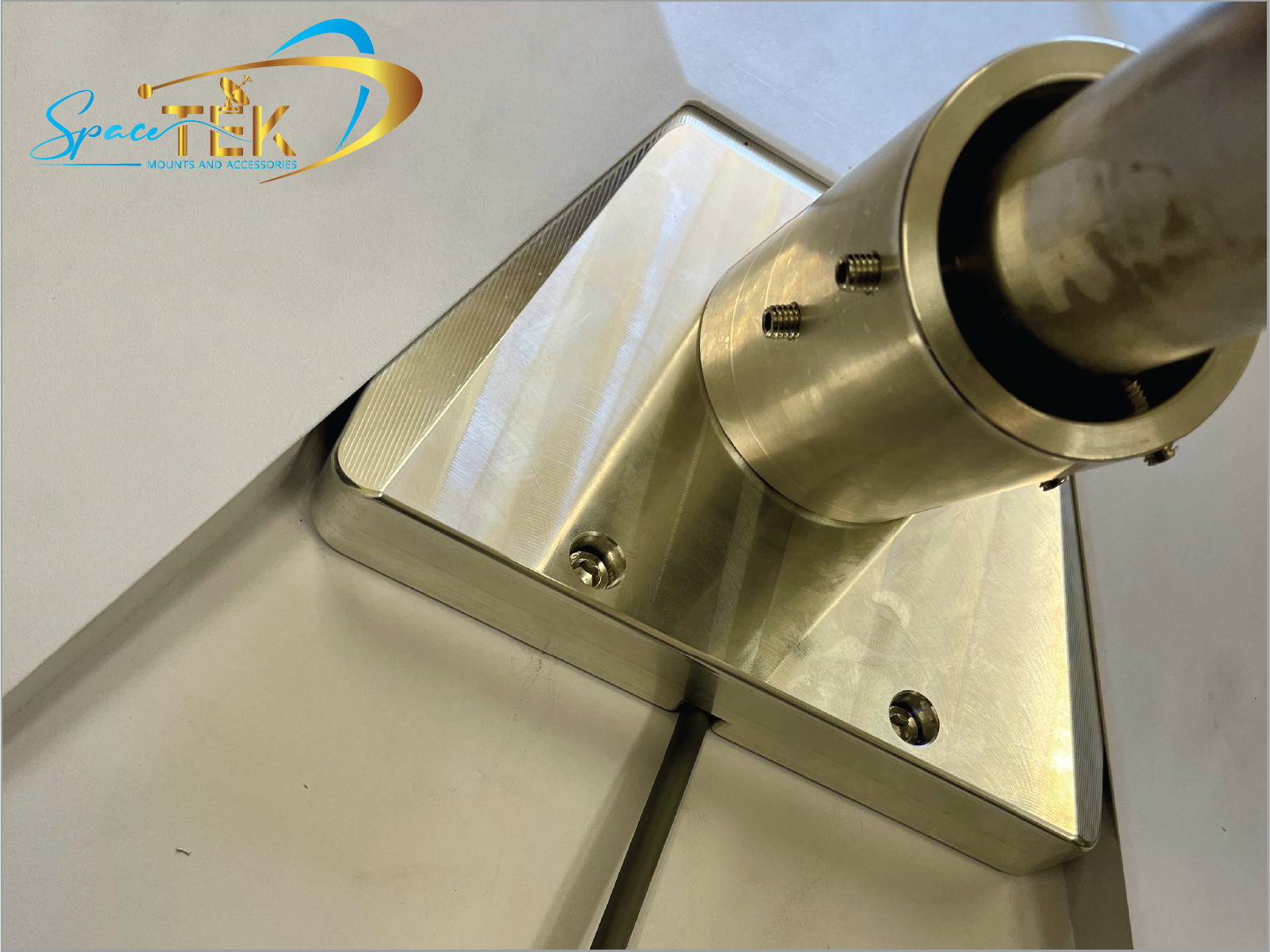

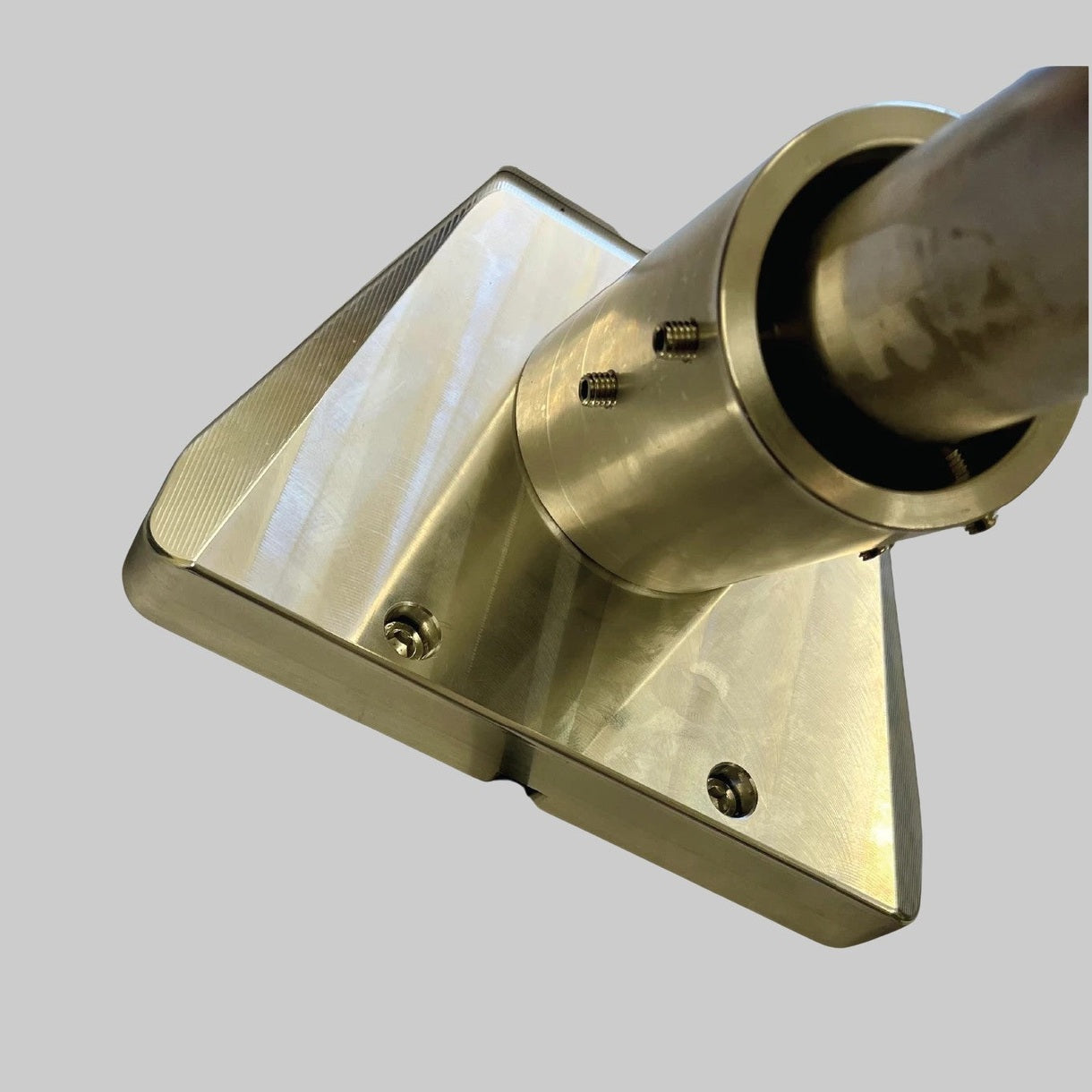

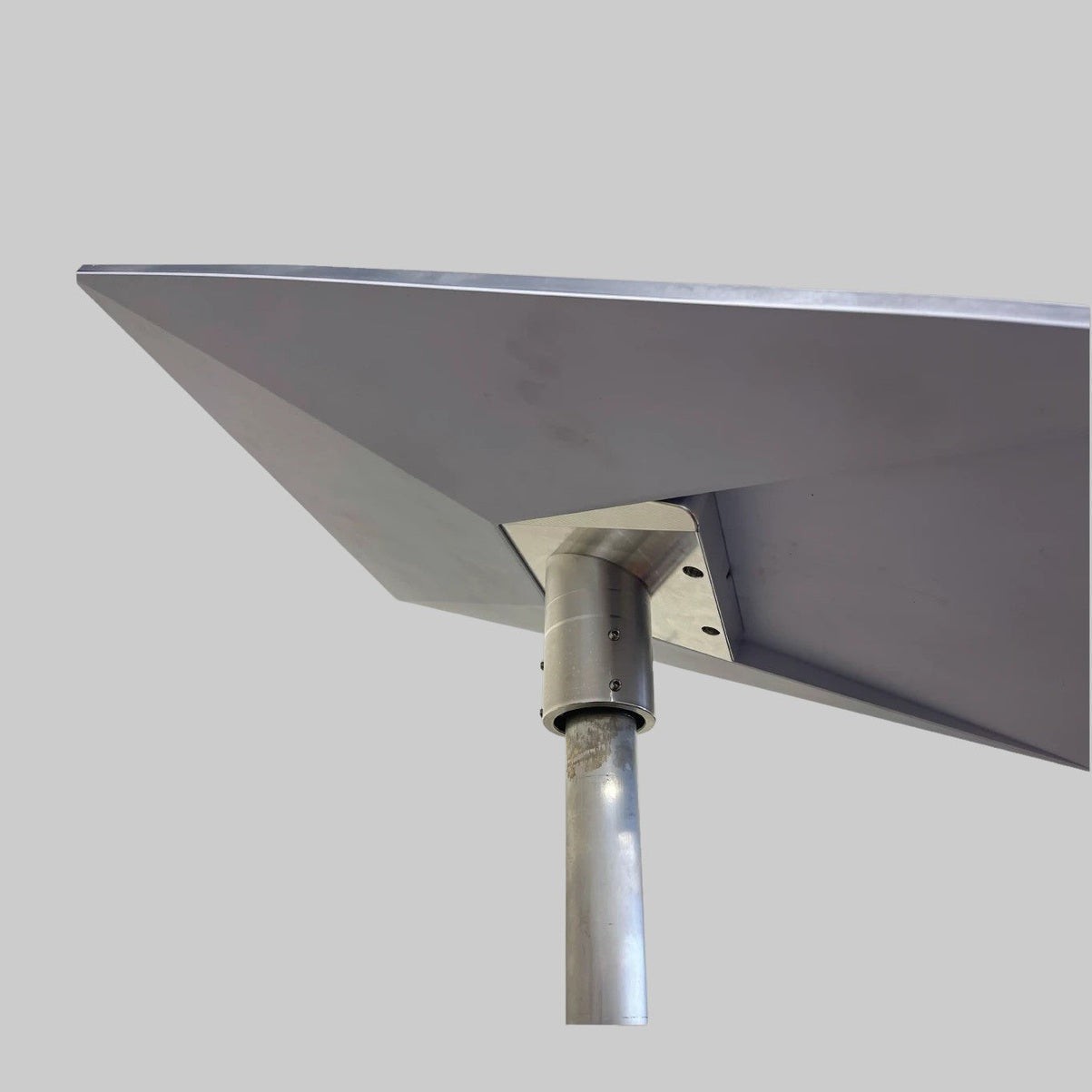

6. Position the assembly onto the pole and tighten the stainless steel grub screws evenly.

7. Confirm alignment and clamp tension before final cable routing.

Important Notes

⚠️ This adapter must be installed on a structurally sound pole or mast only.
⚠️ Do not exceed the recommended pole diameter range.
⚠️ Ensure all grub screws and fasteners are fully tightened to prevent rotation or slip.
⚠️ Spacetek is not liable for damage caused by improper installation or inadequate pole strength.

Ideal Use Cases

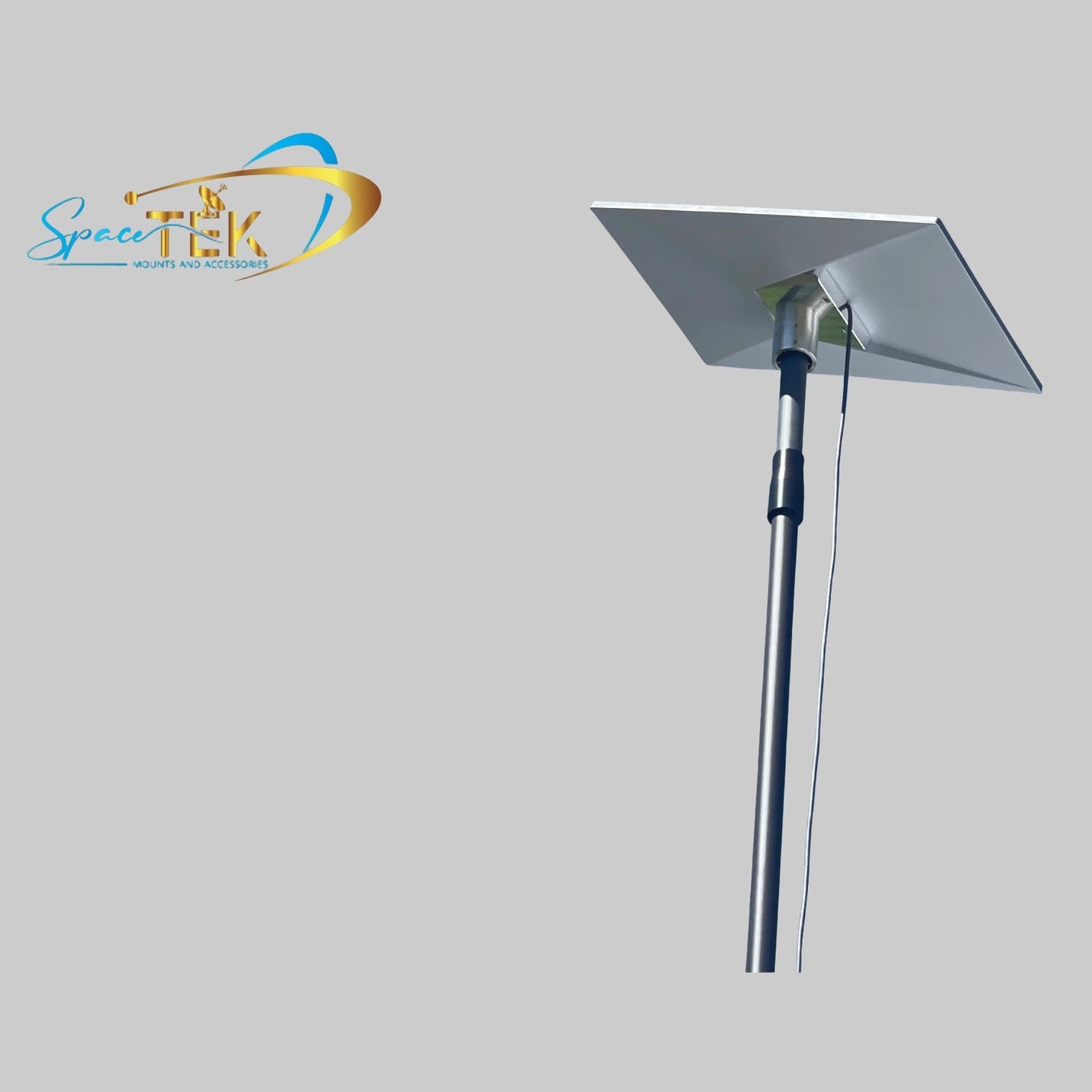

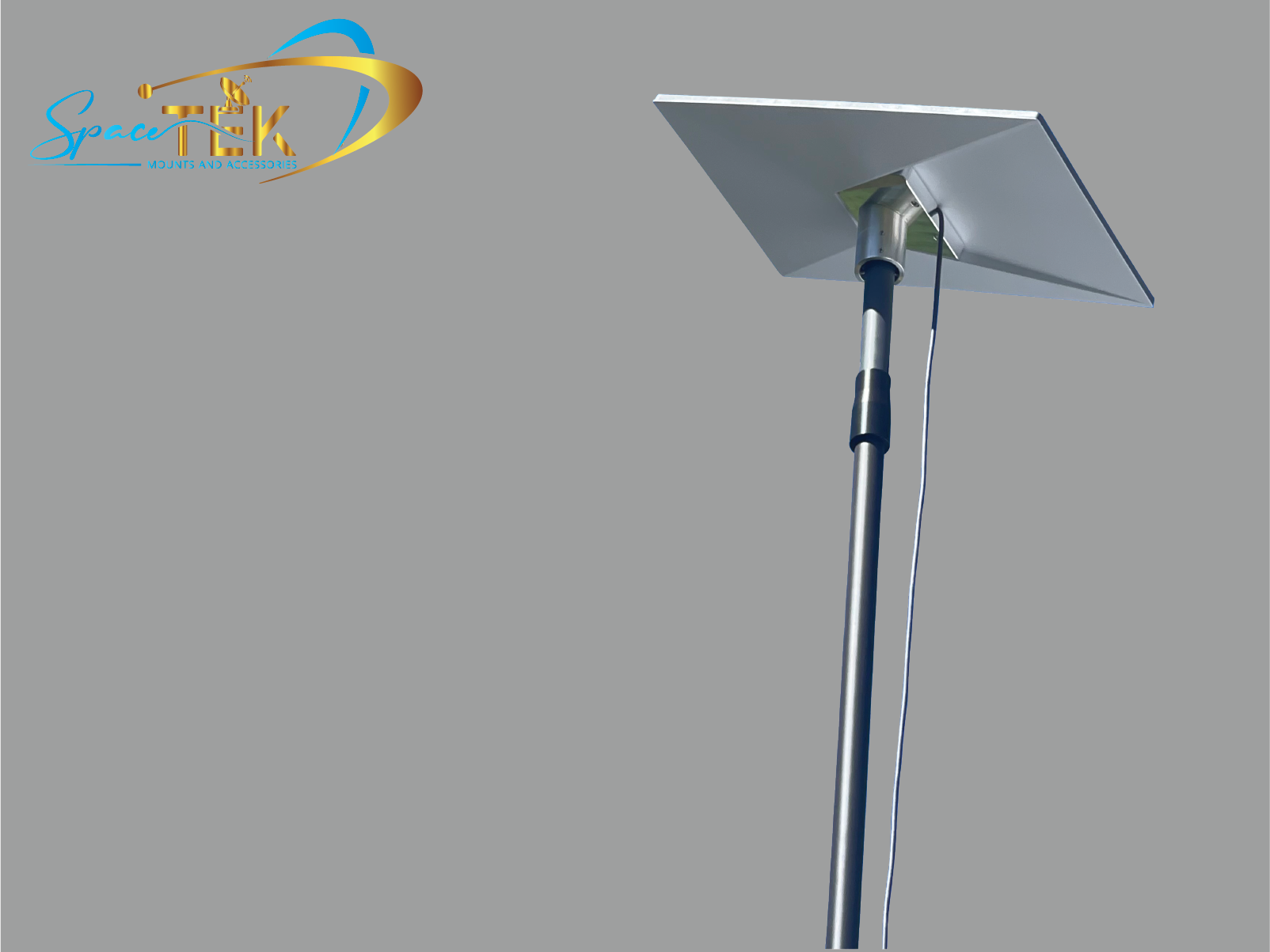

✅ Roof-mounted pole installations
✅ Wall-mounted mast systems
✅ Existing ground or building-mounted poles
✅ Residential, rural, and commercial Starlink Gen 3 setups
