D-Link 5-Port Gigabit Desktop Switch – Starlink Ethernet Expansion

Description

Expand the connectivity of your Starlink system with this low powered, plug & play ethernet switch.

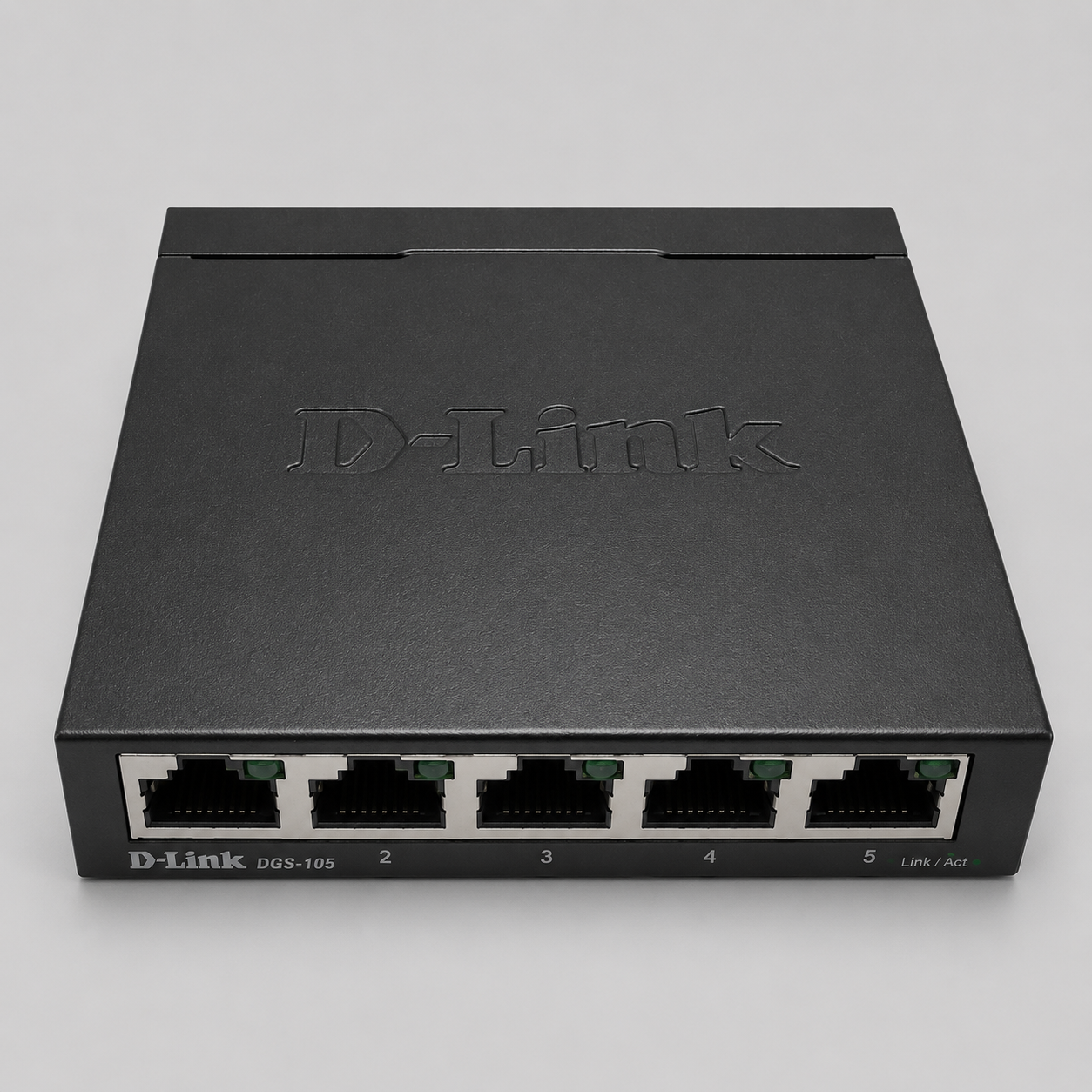

The D-Link DGS-105 is a 5-port unmanaged Gigabit desktop switch for expanding wired Ethernet connectivity from a Starlink router or Ethernet adapter (for Gen 2 router). It is suited to home networks, home offices, caravans and RV setups where multiple wired devices need stable LAN access.

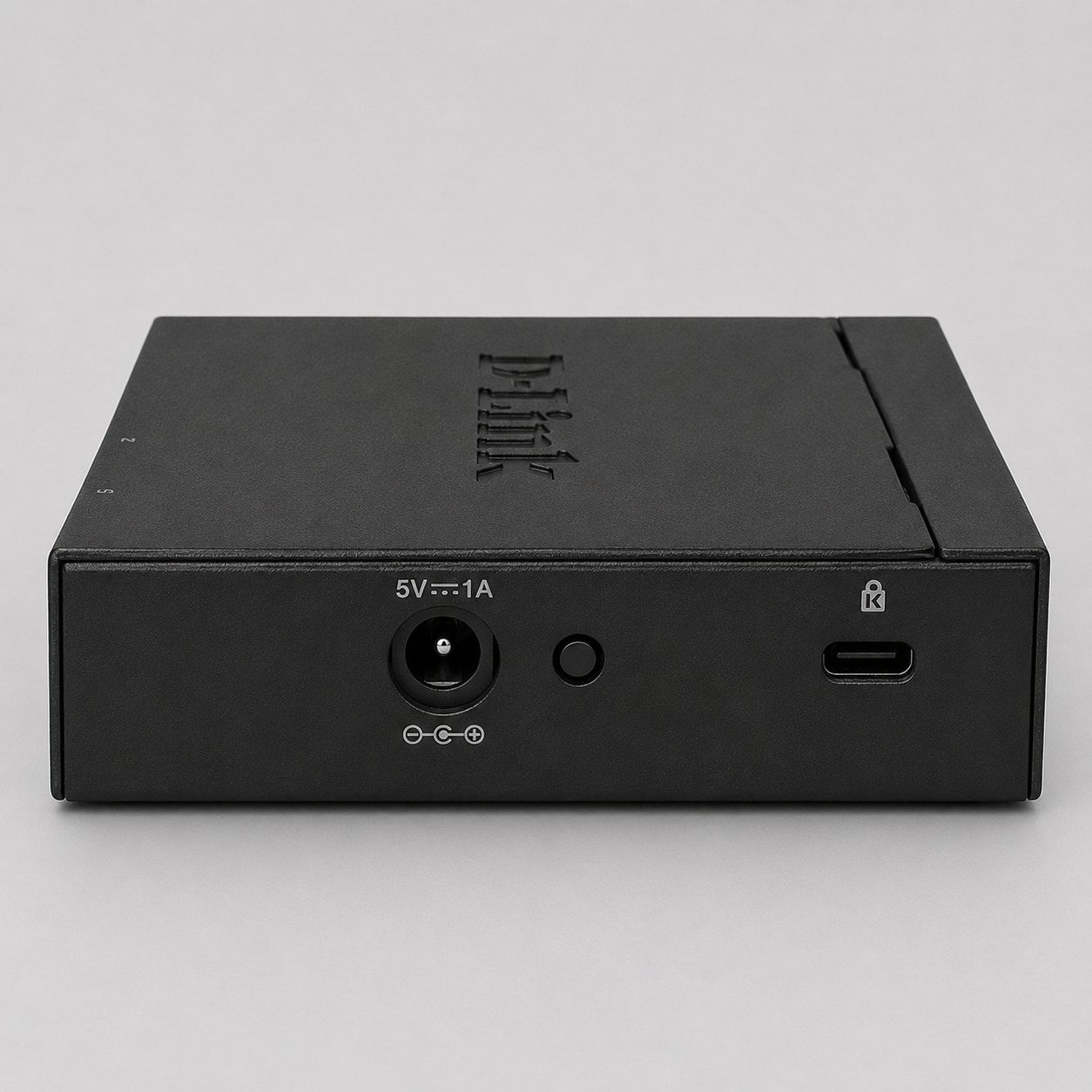

The DGS-105 uses a metal housing, fanless operation, plug-and-play setup, five 10/100/1000BASE-T ports, QoS support and IEEE 802.3az energy-efficient Ethernet. It is low power, and low form factor allowing you to mount it on a wall, cabinet or other discreet locations. The switch can also be powered by 12v systems with an input of 5V / 1 AMP (adaptor not included)

If you require additional Ethernet (RJ45) patch cables you can find the Slim versions and Outdoor versions here.

Product is supported by D-LINK directly and comes with a 3-Year warranty.

Key Features

✅ 5-Port Gigabit Ethernet Expansion - Adds five wired Gigabit Ethernet ports for devices such as PCs, smart TVs, VoIP hardware, access points and other home/vehicle networking equipment.

✅ Plug-and-Play Operation - No configuration required. Connect power, connect Ethernet cables and the switch begins forwarding traffic automatically.

✅ Metal Fanless Housing - Compact metal enclosure with silent operation and passive heat dissipation.

✅ QoS Traffic Prioritisation - IEEE 802.1p QoS helps prioritise time-sensitive traffic such as streaming, VoIP and gaming.

✅ Energy Efficient Ethernet - IEEE 802.3az support reduces power use on inactive links and adjusts power based on cable length.

Installation Overview

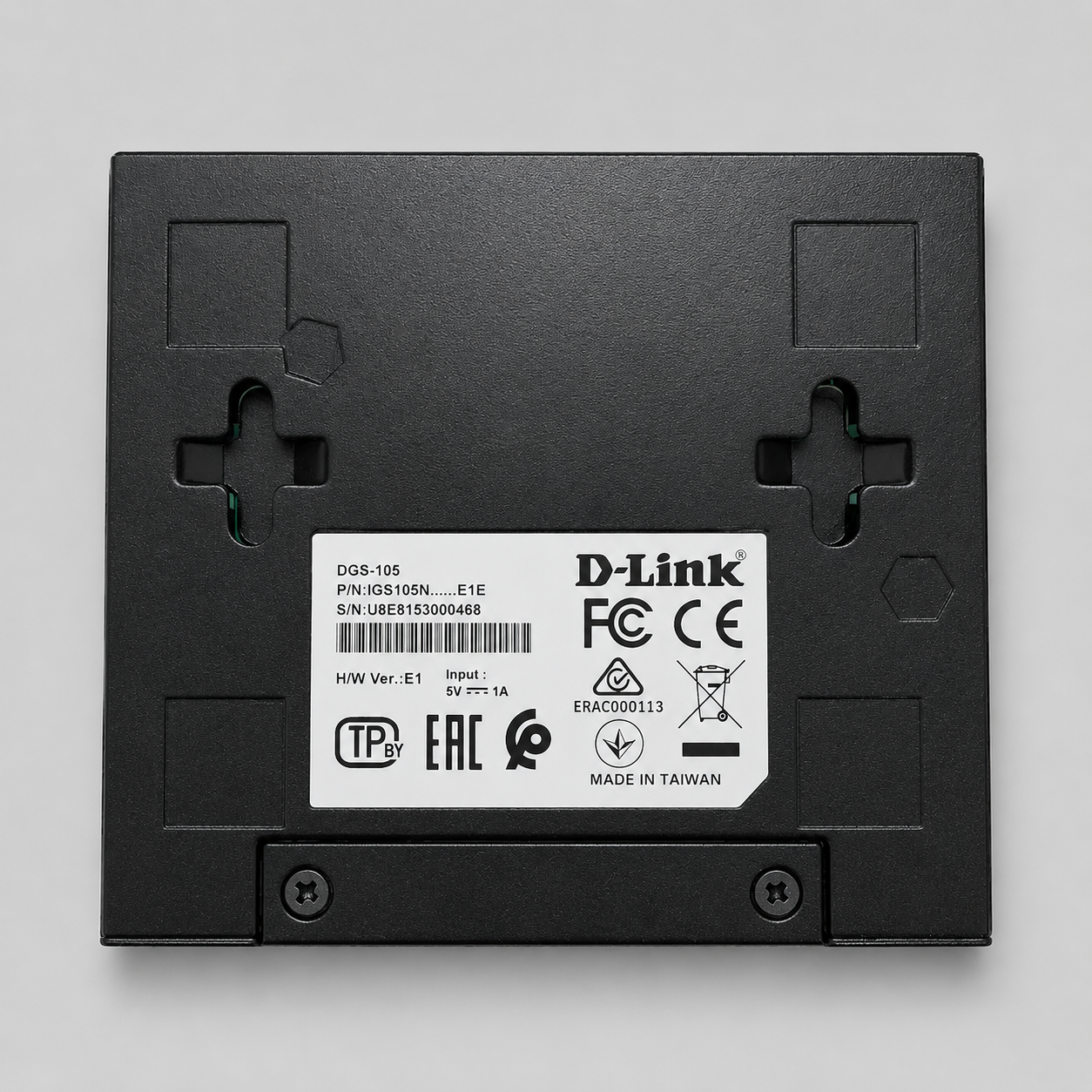

1. Place the switch on a stable, dry and ventilated surface or alternatively you can wall mount it with the supplied fasteners.

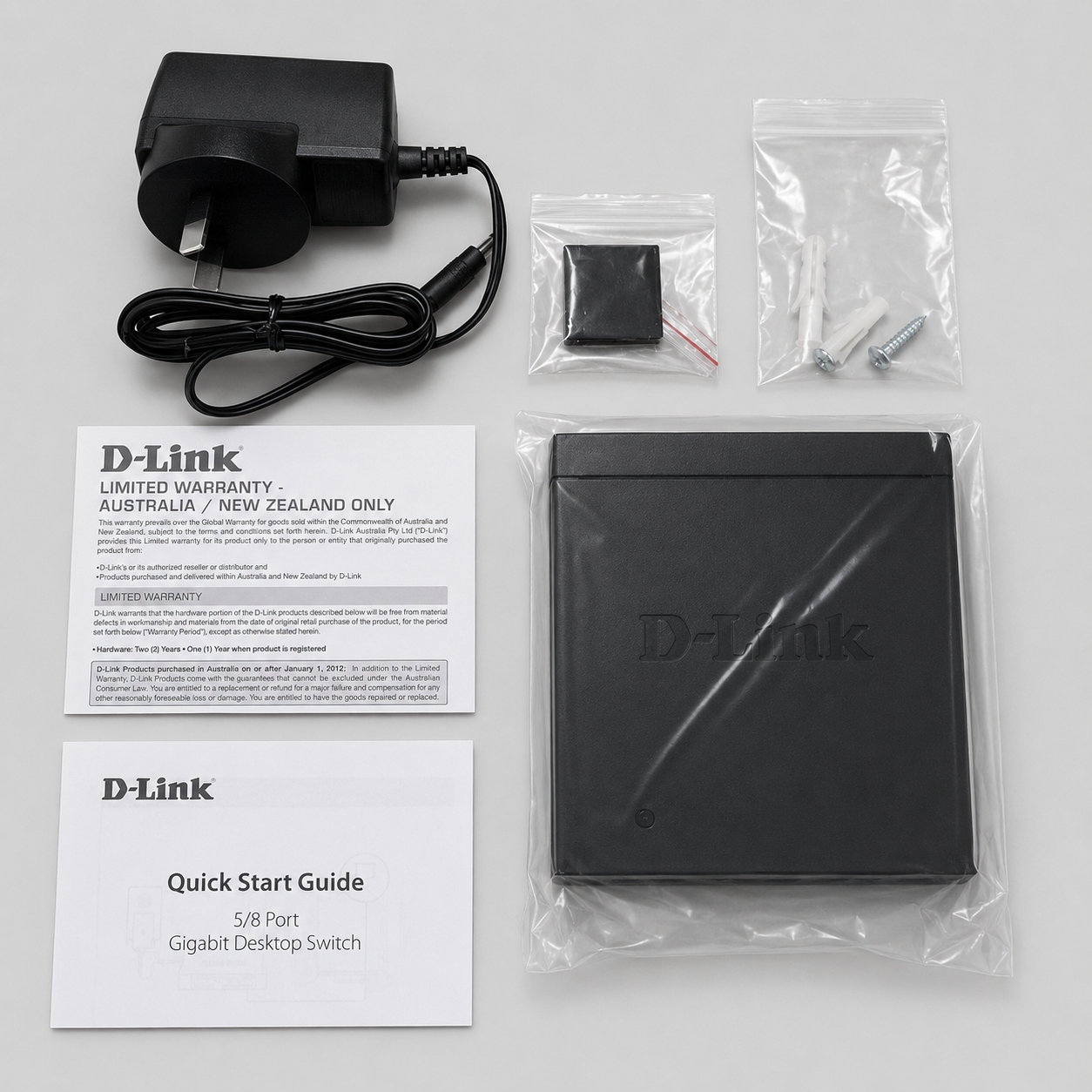

2. Connect the supplied power adapter to the switch.

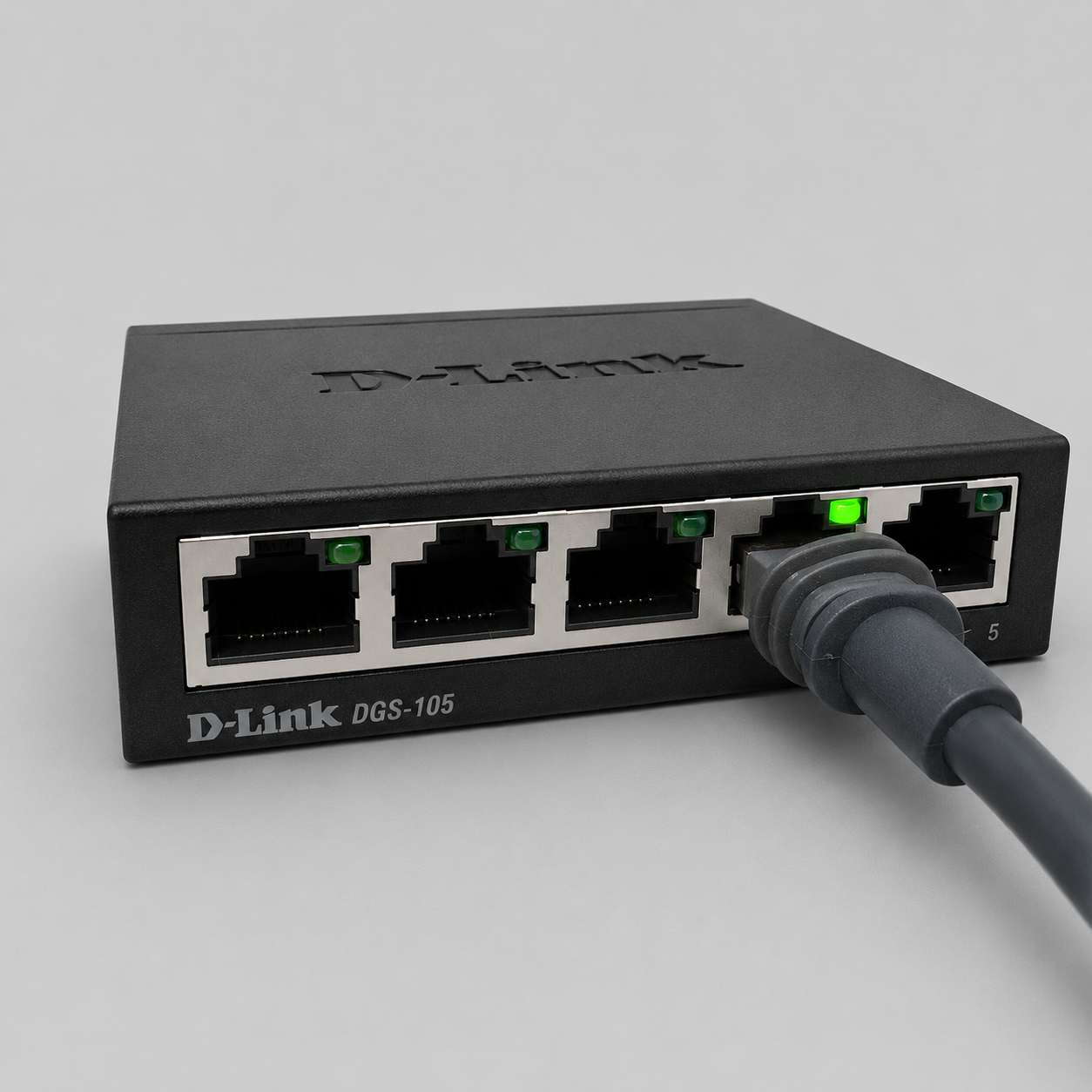

3. Connect one Ethernet cable from the Starlink router or Starlink Ethernet adapter to any switch port.
4. Connect further wired devices to the remaining Gigabit Ethernet ports.
5. Confirm link status using the front LED indicators (Green).
6. Secure cables with strain relief where installed in caravans, cabinets or equipment bays.

Important Notes

⚠️ This switch is not weatherproof. Install only in a dry, protected location.

⚠️ Follow electrical safety and local regulations when routing Ethernet and power cables.

⚠️ Starlink Ethernet adapter will be required for Starlink Gen 2 Routers.
