Roof Mount for Starlink - Wall / Eave Mount - Gen 3

Description

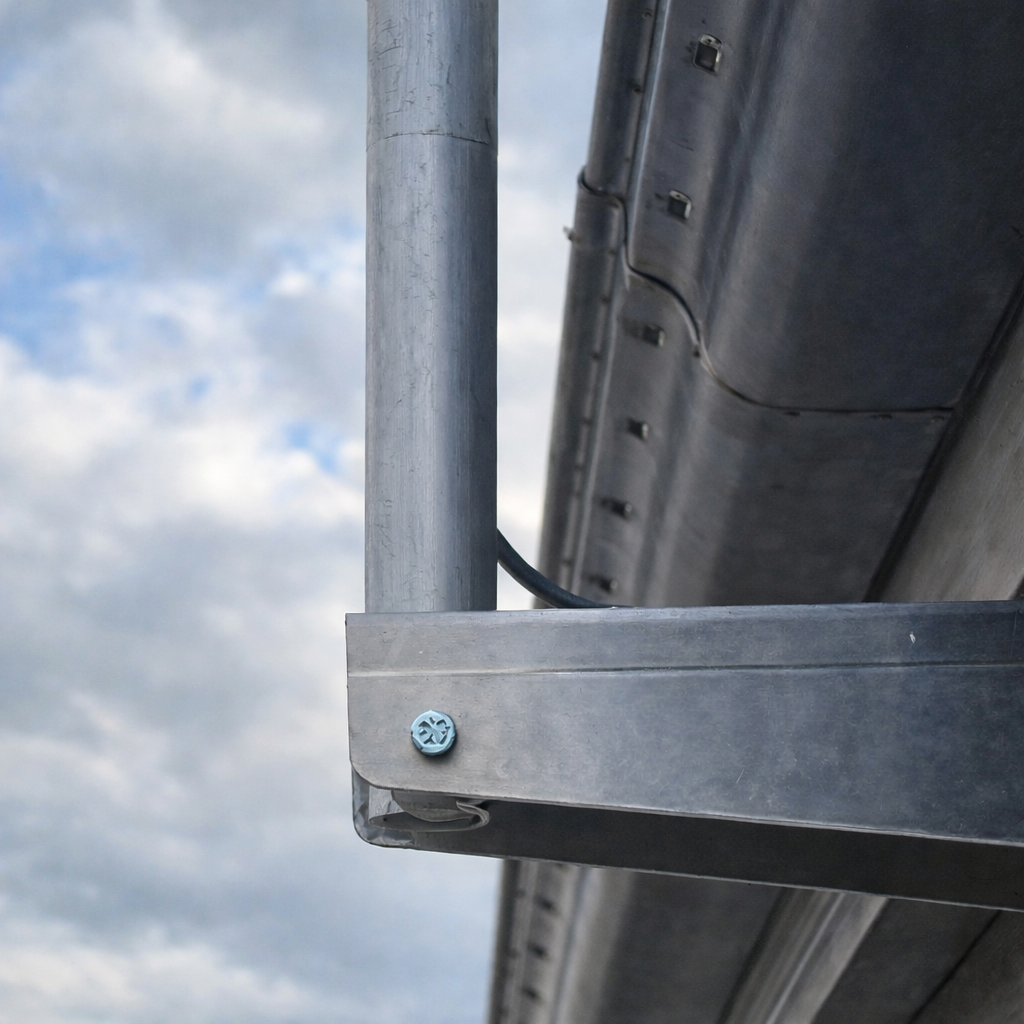

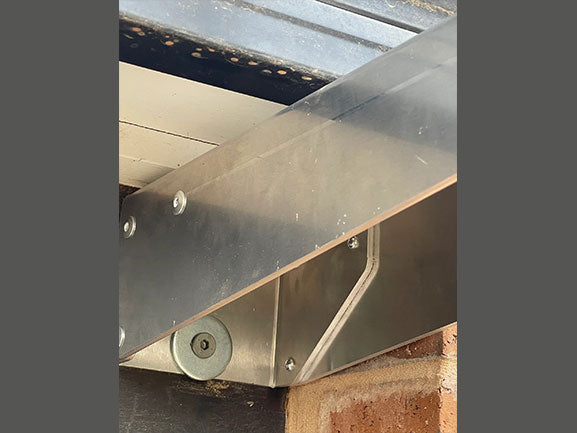

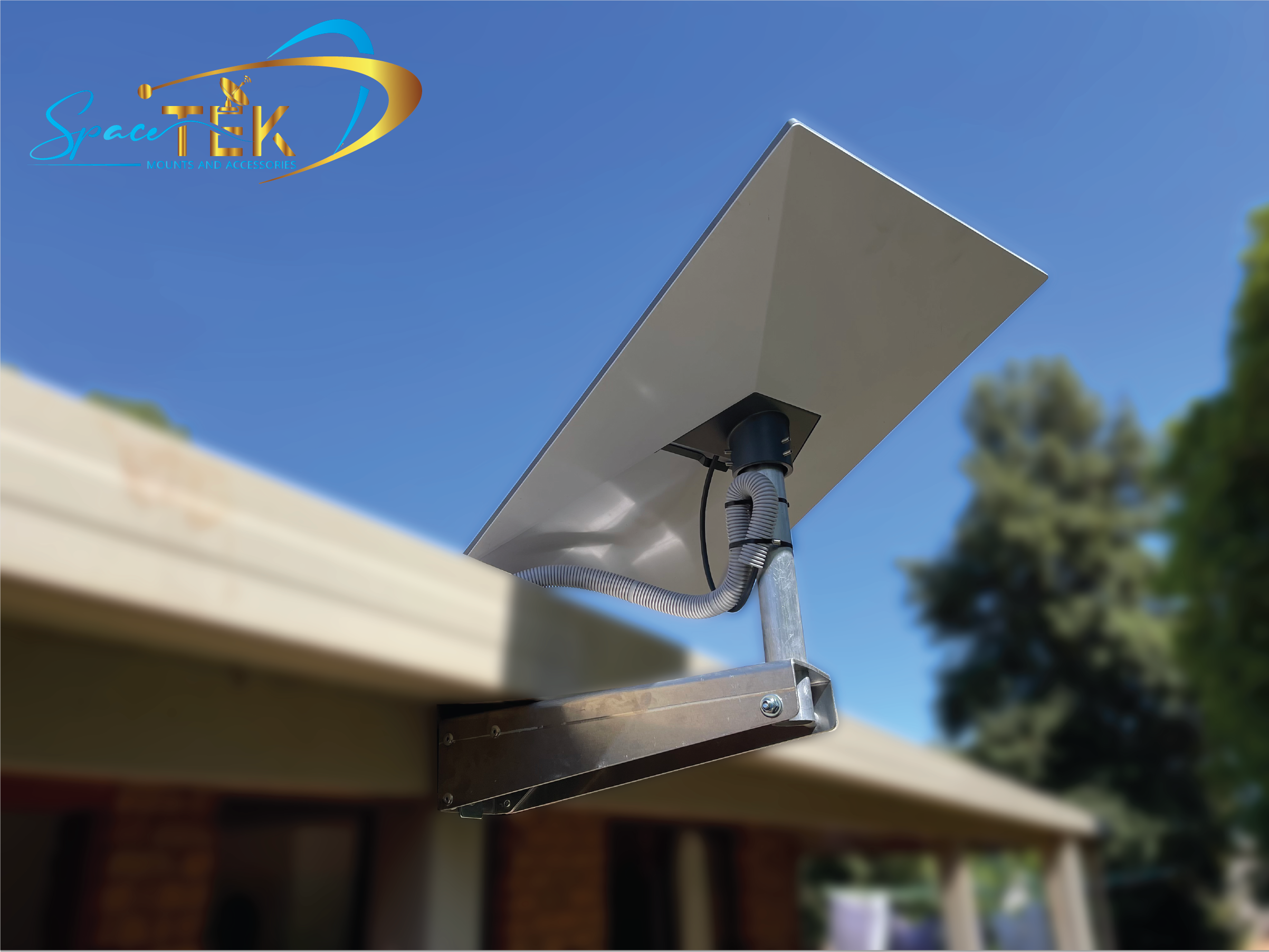

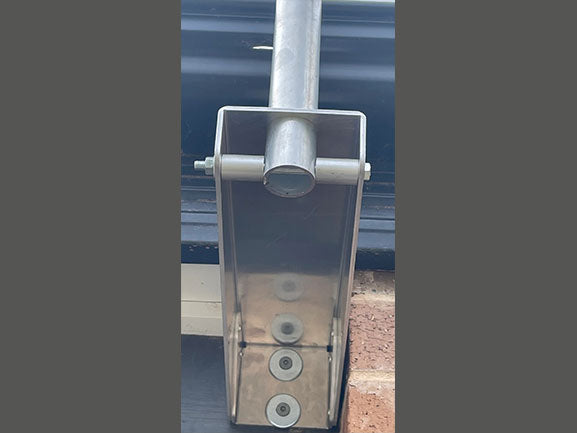

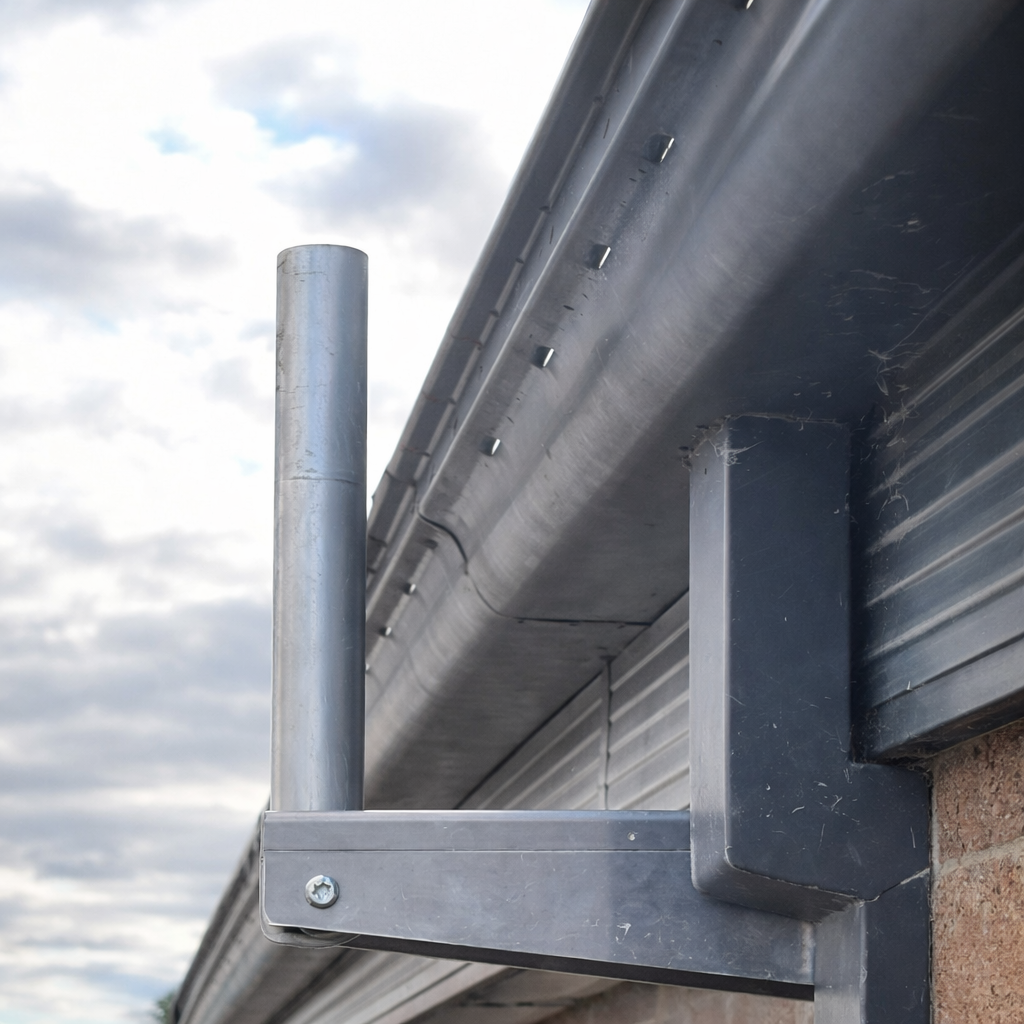

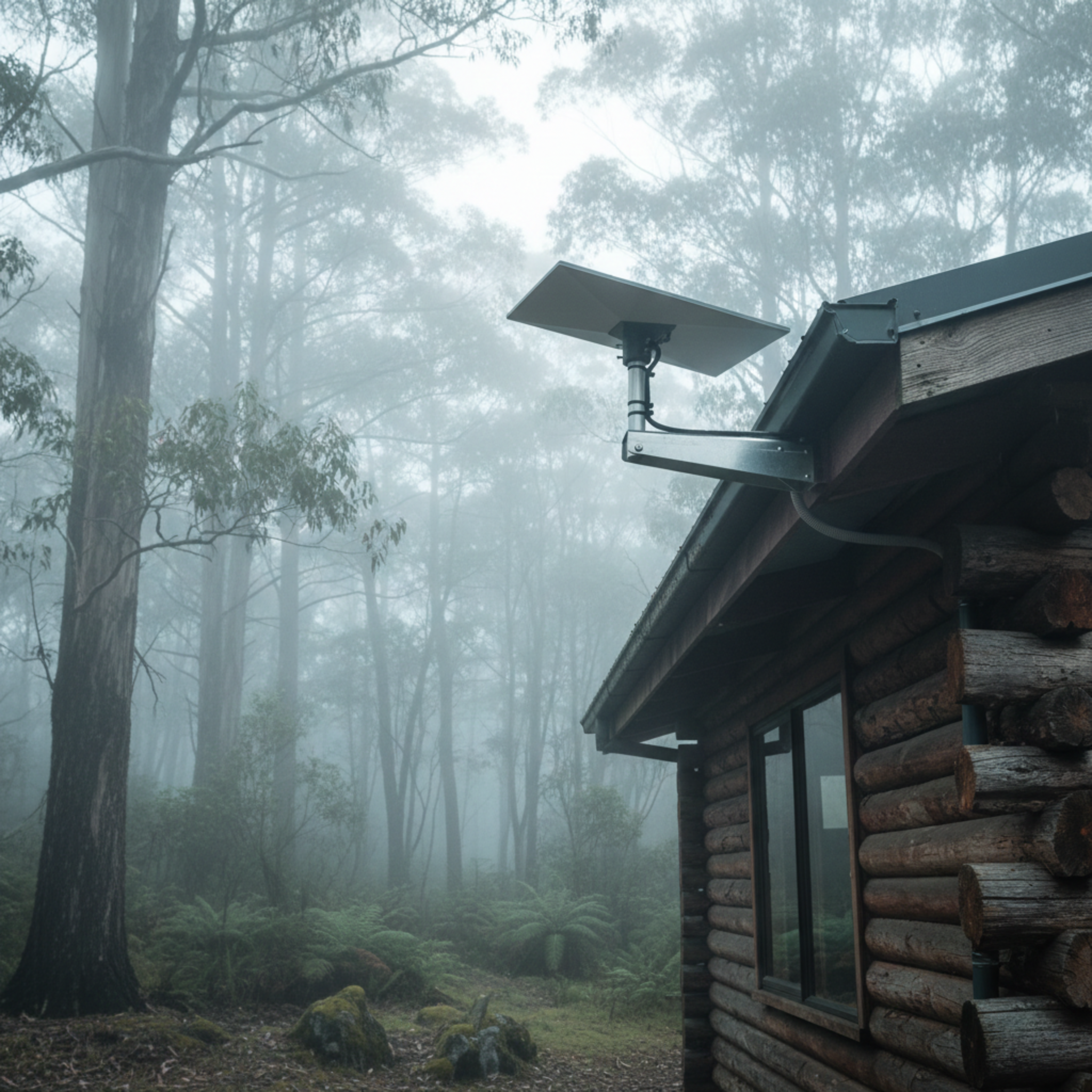

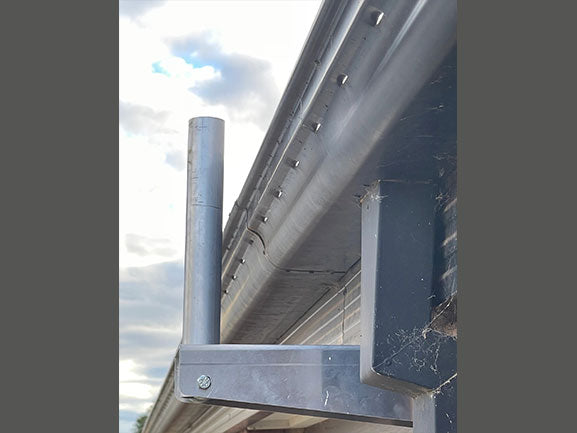

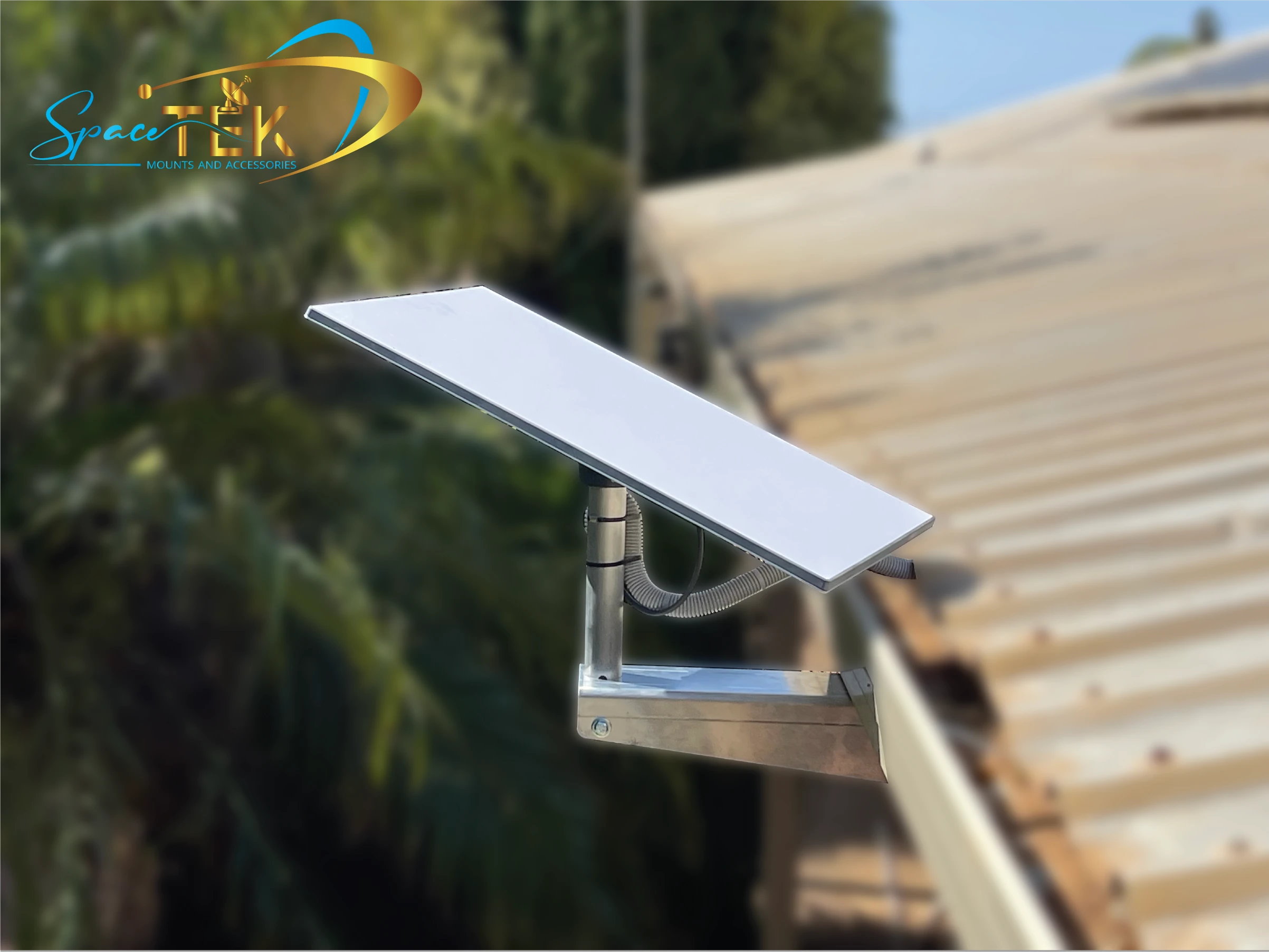

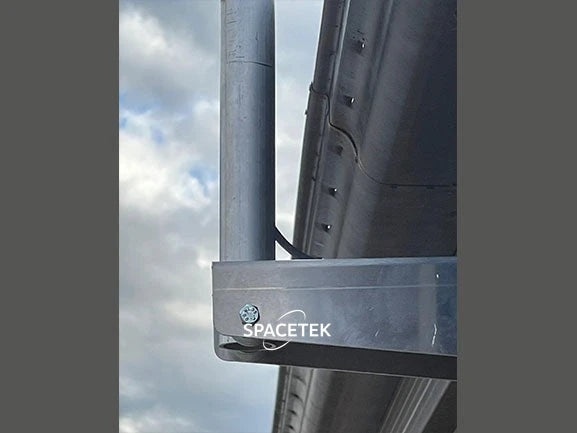

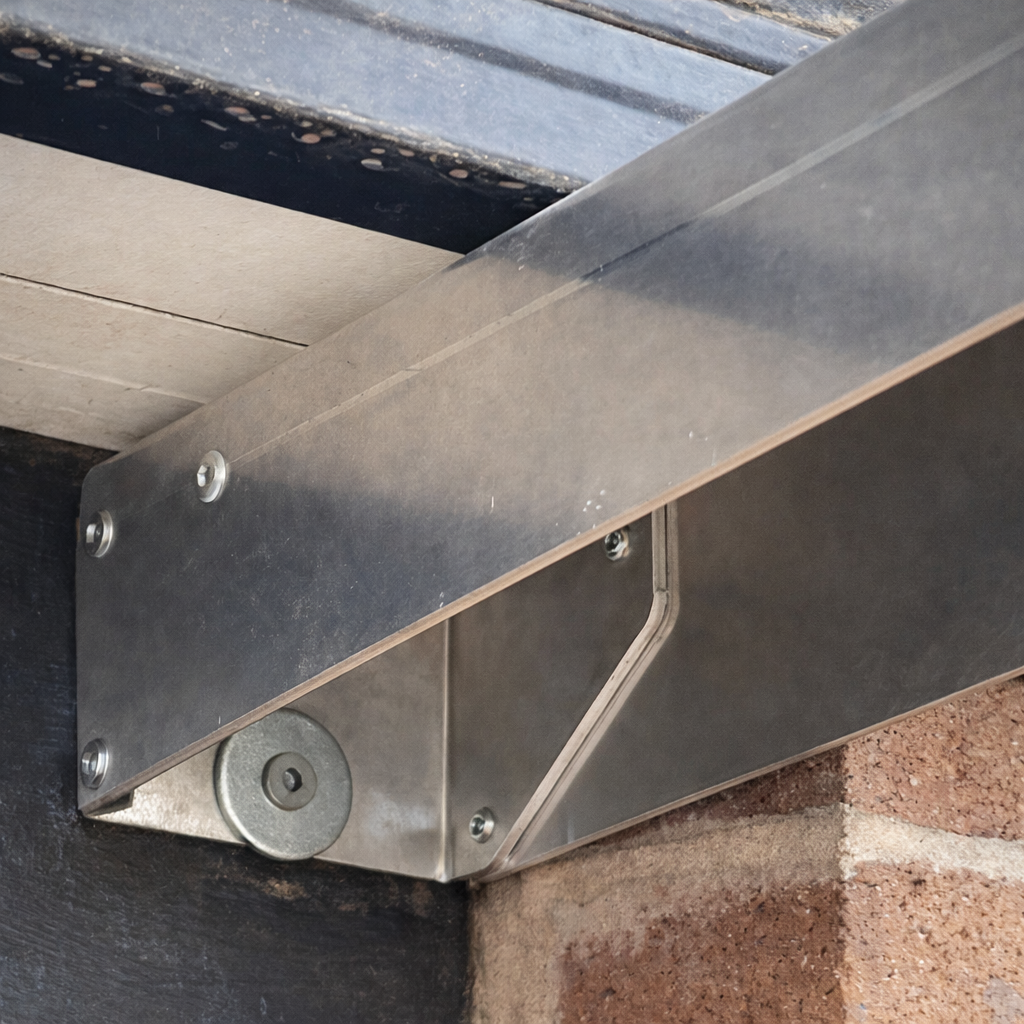

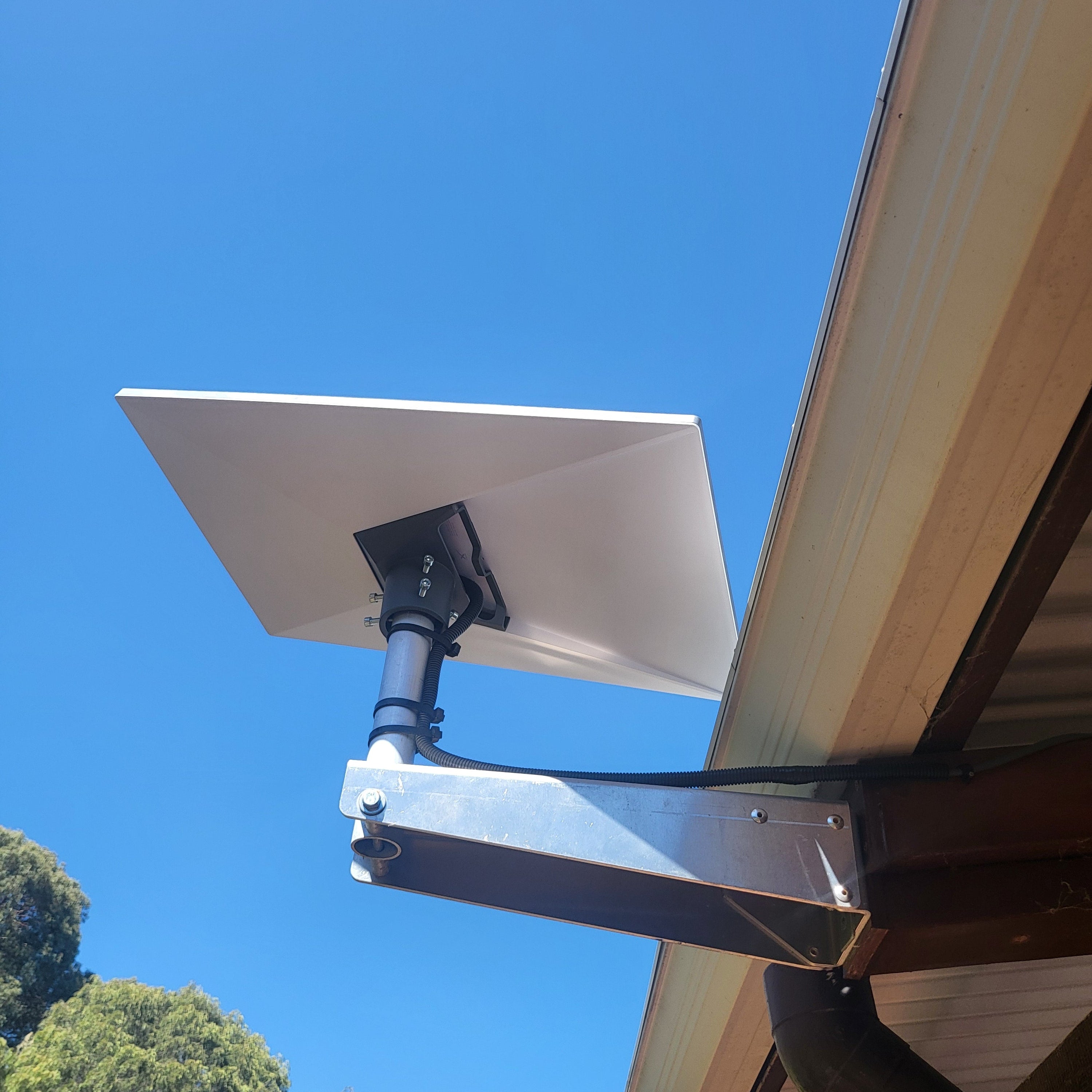

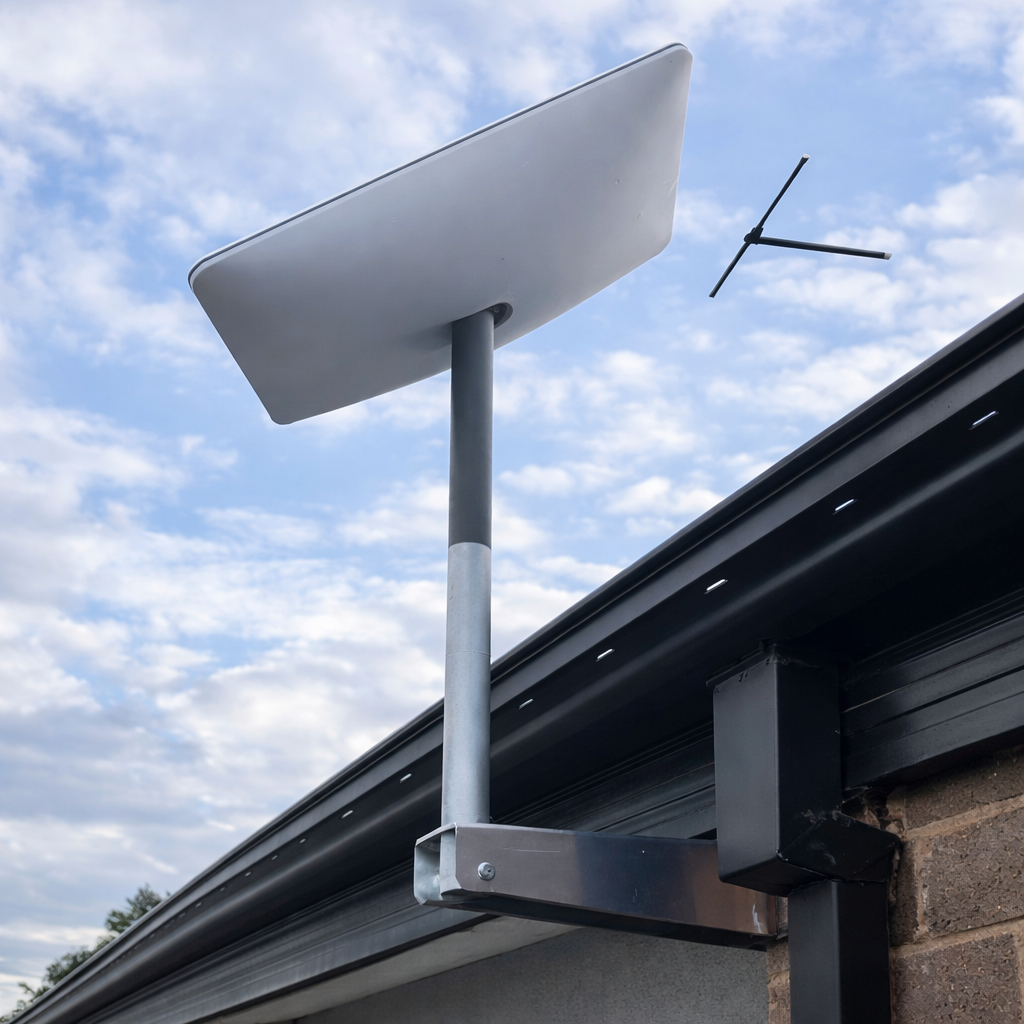

6The Starlink Wall & Eave Mount for Gen 3 (V4) is a fixed structural mounting solution designed for permanent installation on building walls or eaves.

It provides a stable, elevated mounting position for the Starlink Gen 3 terminal where roof penetration is not preferred or practical.

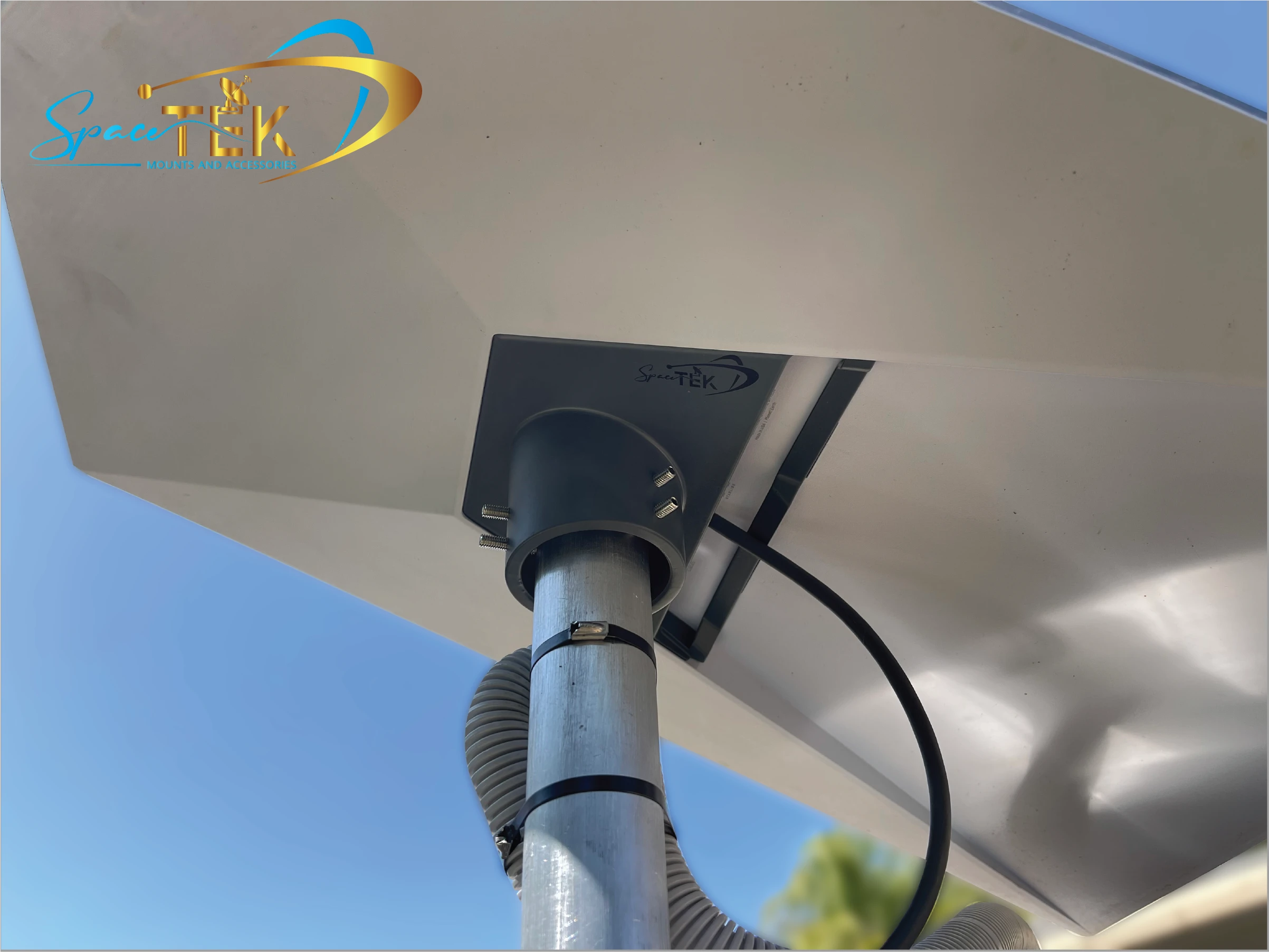

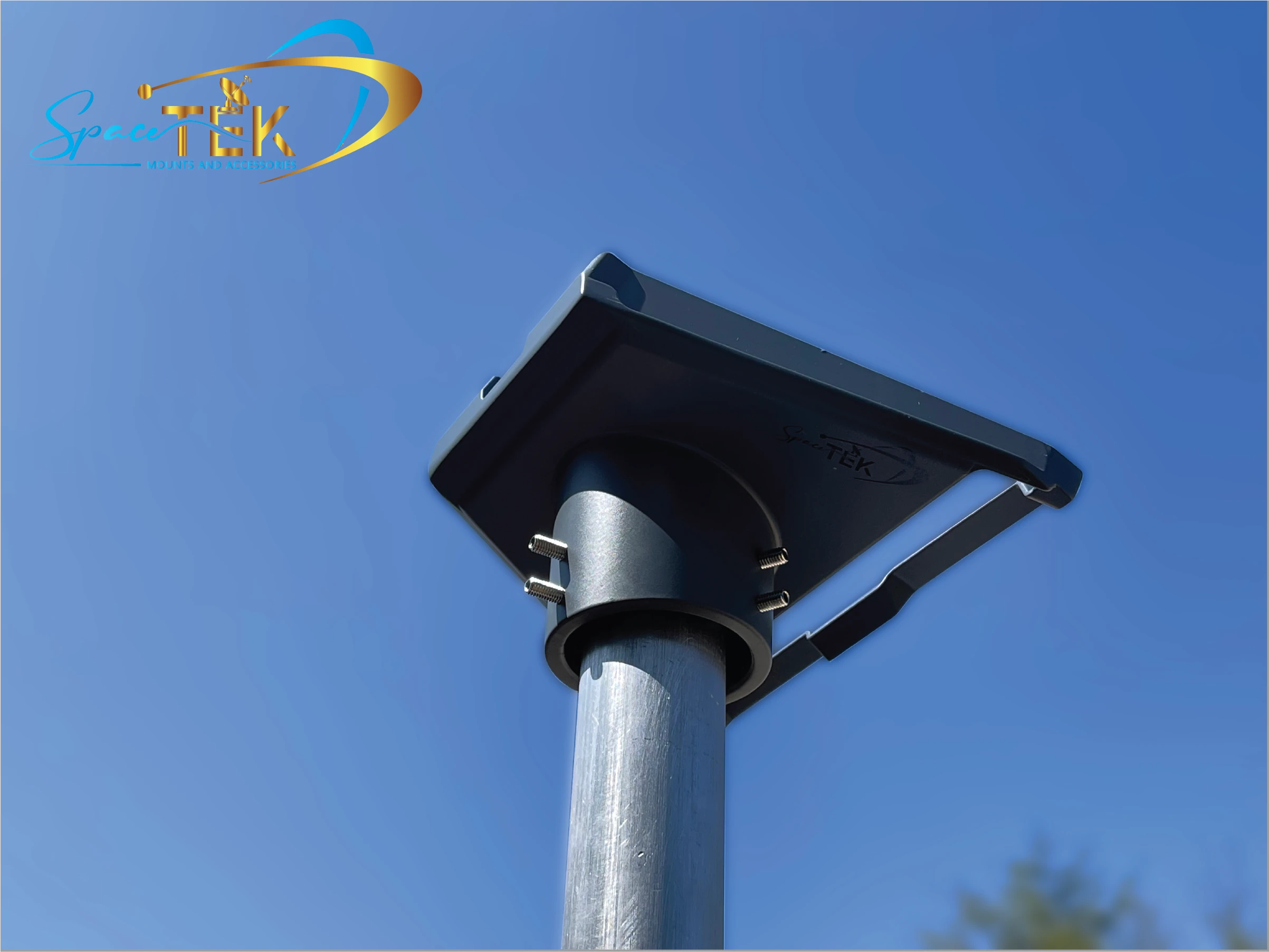

Manufactured in Australia for Australian & New Zealand conditions, the system includes a precision-engineered aluminium Gen 3 (V4) pole adapter with a durable powder-coated finish. The adapter incorporates a fixed 20-degree mast angle in line with Starlink installation guidance, supporting correct dish orientation and long-term mechanical stability.

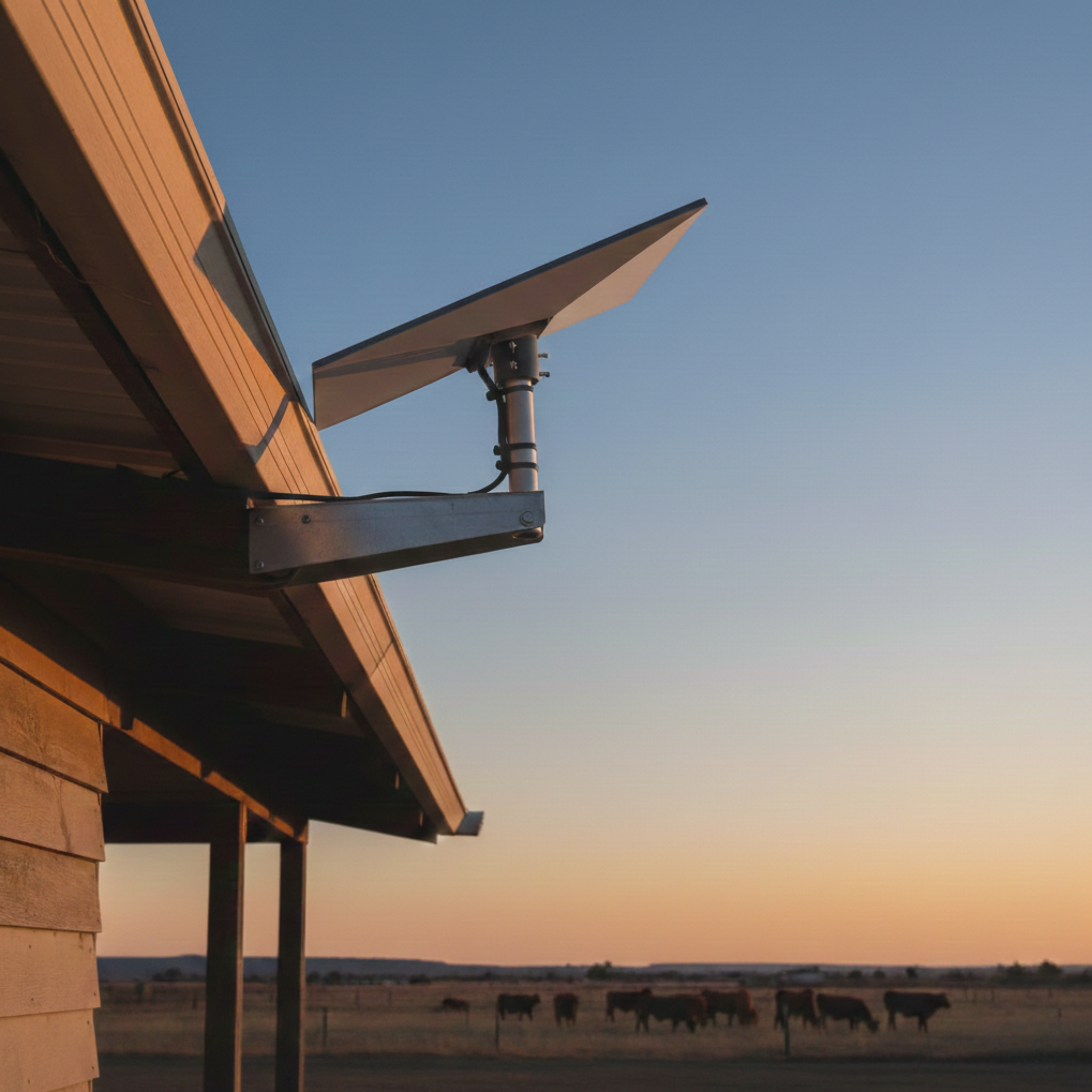

Choose between a bracket arm length of 340mm (small) or 765mm (large). The larger arm is intended for homes with longer eaves (particularly in tropical areas) that cater for larger rainfall.

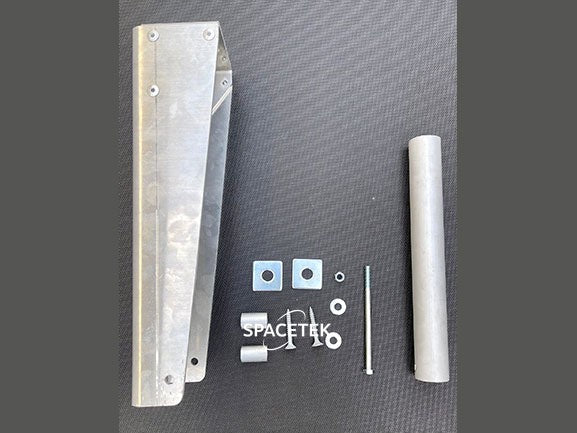

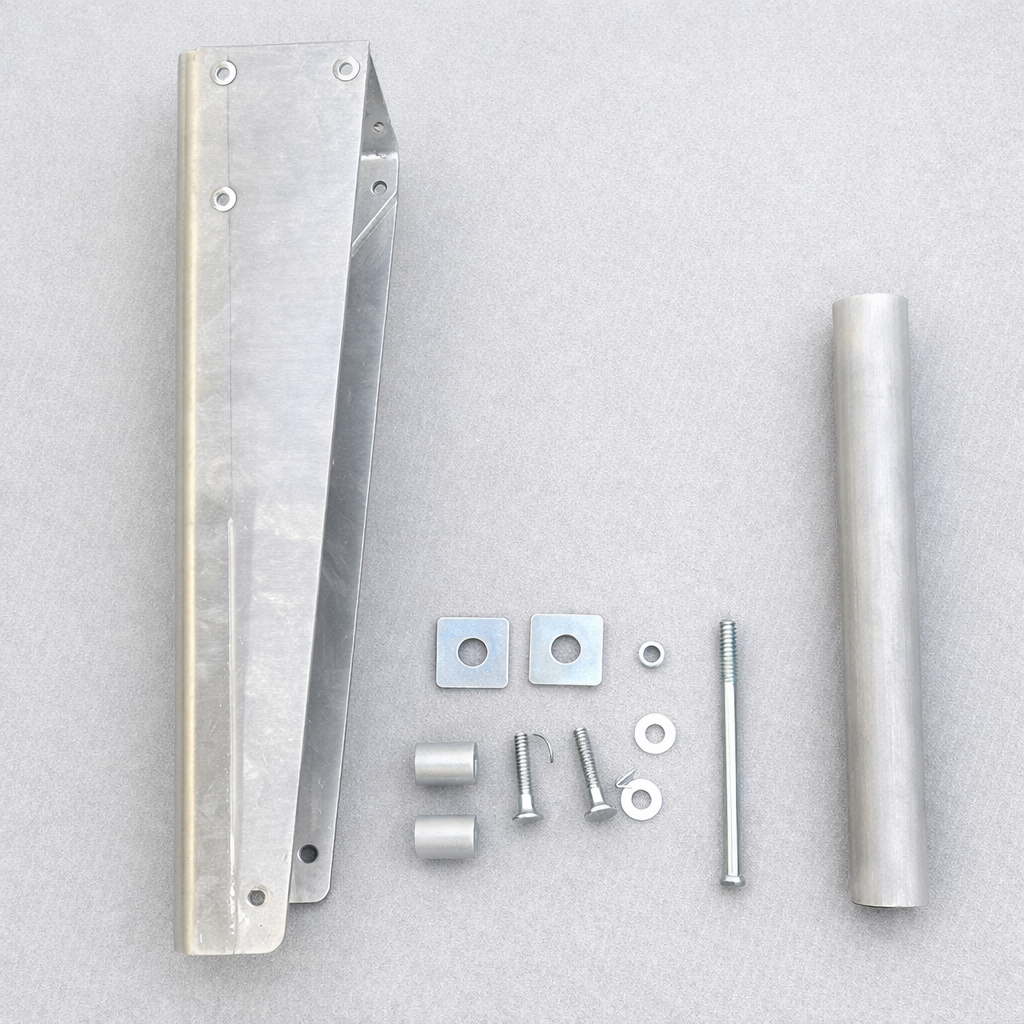

Kit Inclusions:

• 1 x Gen 3 Aluminium Pole Adator & Grub Screws - Standard Duty

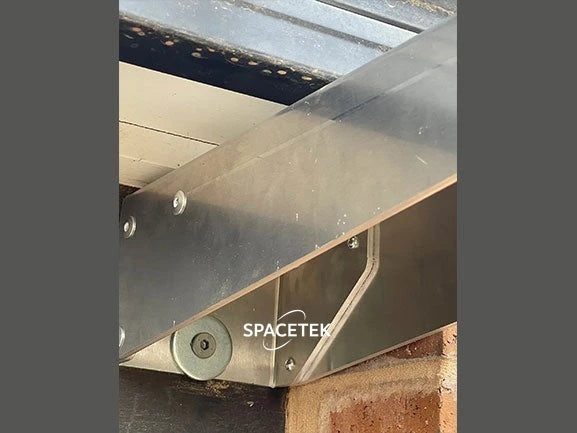

• 2 x Aluminium Wall Mount Spacers

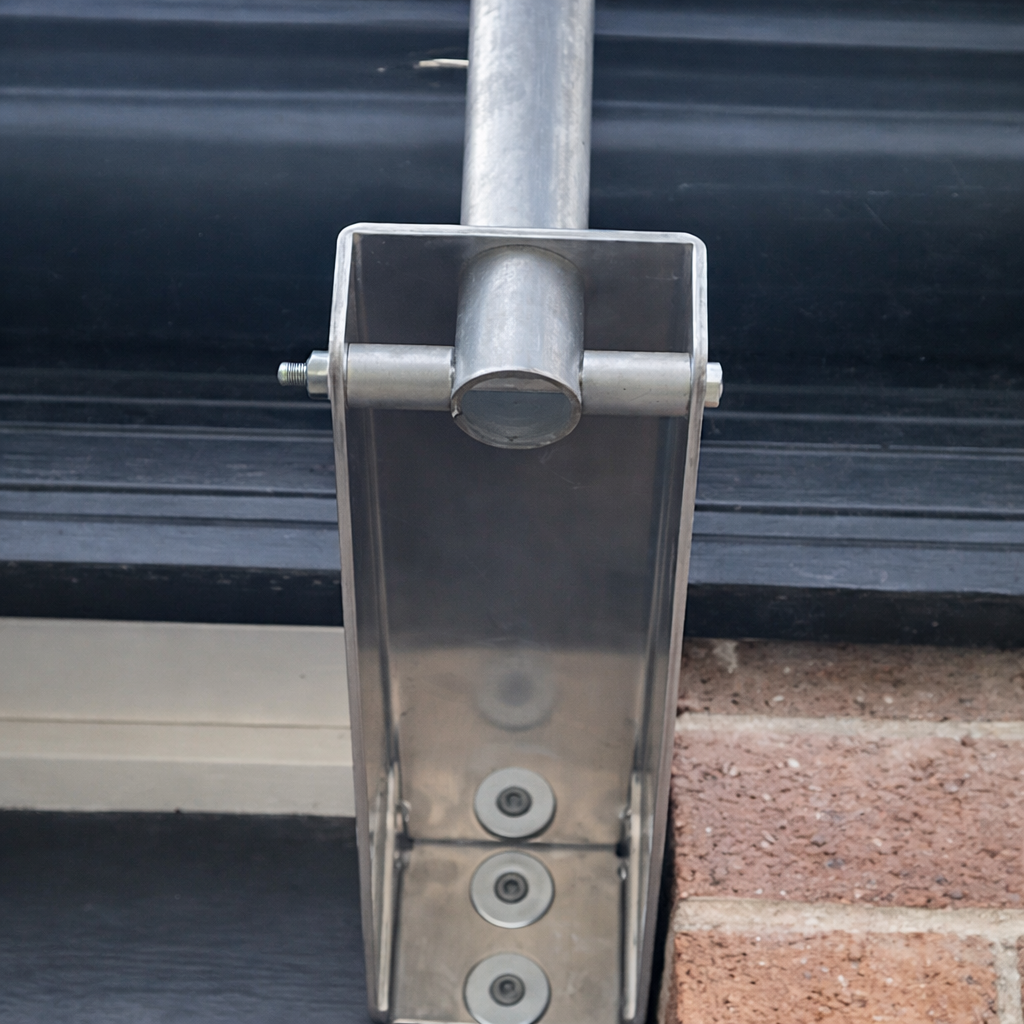

• 1 x Aluminium Wall Mount Bracket/Arm (Choose Length, 340mm or 765mm).
  • For 765mm mount, requires 720mm clearance from wall.
• 1 x 400mm Aluminium Spigot
• Generic Fastener Pack (please check suitability for your specific install)

Note: Our mounting kits do not come with a Starlink Dish.

Key Features

✔️ Wall & Eave Structural Mounting — Designed for secure attachment to walls or eaves on residential and commercial buildings.

✔️ Aluminium Construction — Corrosion-resistant finish suitable for coastal, rural, and high-exposure environments.

✔️ Integrated 20-Degree Mast Angle — Aligns with Starlink Gen 3 (V4) recommended installation geometry.

✔️ Aluminium Gen 3 Pole Adapter Included — Rigid interface engineered for repeated installation without deformation.

✔️ Service-Accessible Installation Height — Allows access via ladder for maintenance or terminal removal when required.

Specifications

• Material: Powder-coated aluminium (mount and adapter)

• Compatibility: Starlink Gen 3 (V4)

• Mount Type: Wall / Eave fixed structural mount

• Mast Angle: 20° (fixed)

• Finish: Black powder coat

• Installation Surface: Timber or steel structural members

• Fasteners Required: Substrate-appropriate fixings (not included)

• Pack Contents: Wall/eave bracket + Gen 3 (V4) aluminium pole adapter

Installation Overview

1. Identify a structurally sound wall or eave location with clear sky visibility.

2. Mark fixing points aligned with underlying timber or steel framing.

3. Pre-drill fixing holes as required for the substrate.

4. Apply appropriate exterior-grade sealant to all penetration points.

5. Secure the mount using rated fasteners suitable for the structure.

6. Insert the Starlink Gen 3 mast into the pole adapter and tighten fasteners.

7. Confirm vertical alignment and mechanical rigidity before use.

Important Notes

⚠️ Not suitable for ground, freestanding, or portable installations.
⚠️ All roof or wall penetrations must be sealed to prevent water ingress.
⚠️ Use only substrate-rated fasteners and fix into structural members.
⚠️ Professional installation is recommended

Ideal Use Cases

✅ Residential wall installations
✅ Eave-mounted Starlink systems
✅ Rural and regional properties
✅ Fixed building installations where roof mounting is not preferred
